Closed Front / Multi-Spindle Series

$13,004.00

Duty Rating Multi-Spindle
Cutting Width 90"
Hydraulic Flow Range 20-40 GPM
Max Cutting Diameter up to 5"
Motor Style Geroler-style hydraulic motor; right-angle gearbox

* The manufacturer’s suggested retail price (MSRP) does not include shipping and taxes. Dealers set actual prices, including invoicing currency.

Description

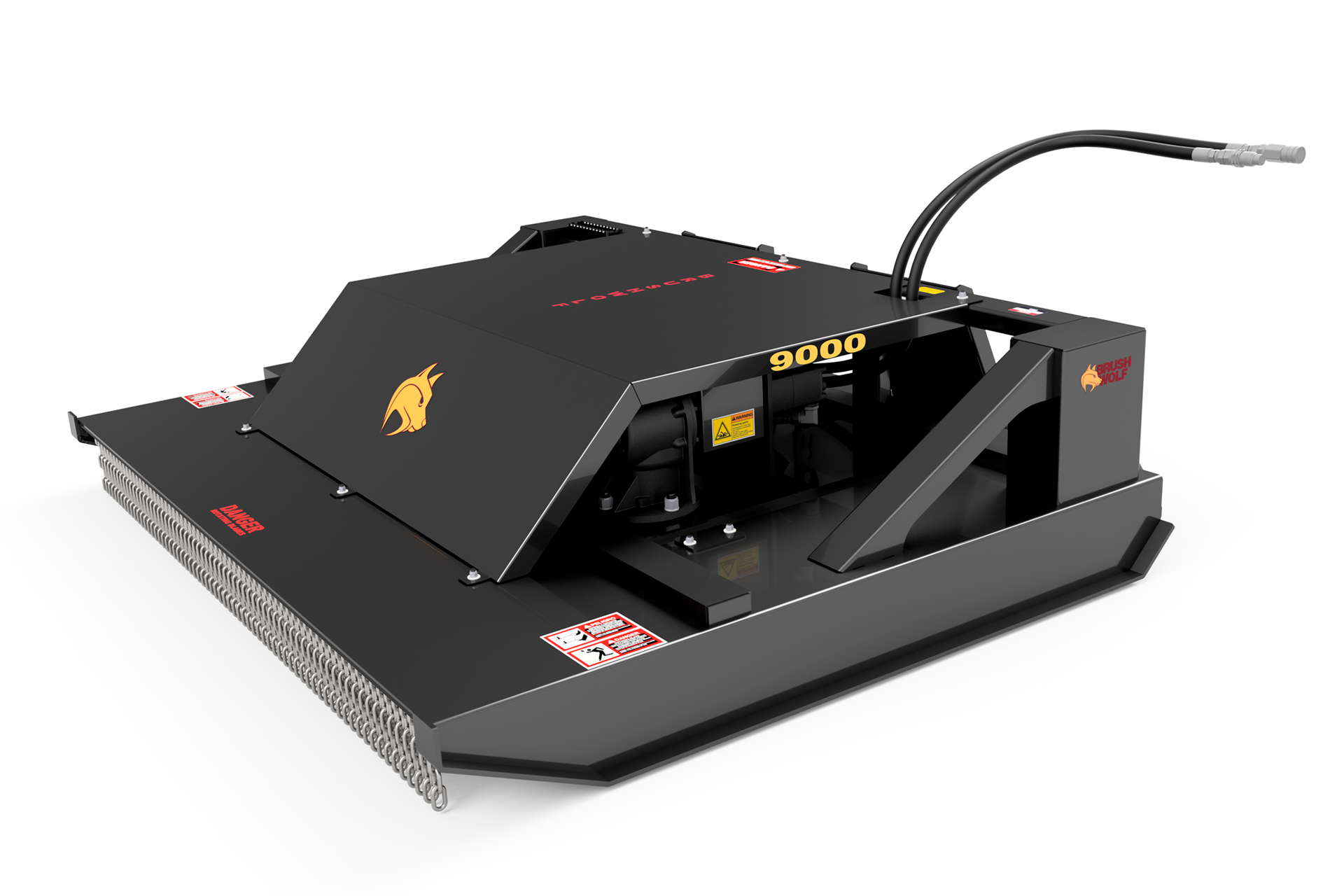

The almighty 9000 can cut more in a single pass than any other rotary brush cutter. These extra wide machines provide a whopping 7.5 feet of complete cutting coverage, leaving no ground untouched. The multi-spindle design utilizes two separate motor/gearbox drive assemblies to power four high-strength tempered steel blades to quickly clear large tracts of land. One trip down the trail, and you’re done! You can quickly tackle any project with this hog. The added chain curtain in the front will keep debris in to aid in mulching.

Model Options

Models 9000 SF 9000 HF
  Standard Flow High Flow
Starting MSRP*
Cutting Width 90 in 90 in
Hydraulic Flow Range 20-25 GPM 26-40 GPM
Max Cutting Diameter 4 in 5 in
Tip Speed 14,200-17,800 ft/min 9,600-14,800 ft/min
Overall Width 93.25 in 93.25 in
Overall Length 78.375 in 78.375 in
Weight 1,790 lbs 1,840 lbs
Closed-front-multi-spindle-blade-carrier

Number of Blades

(2) 0.5 x 4 in; updraft

Blade Type

High-tempered updraft steel blades for lift and mulching action.

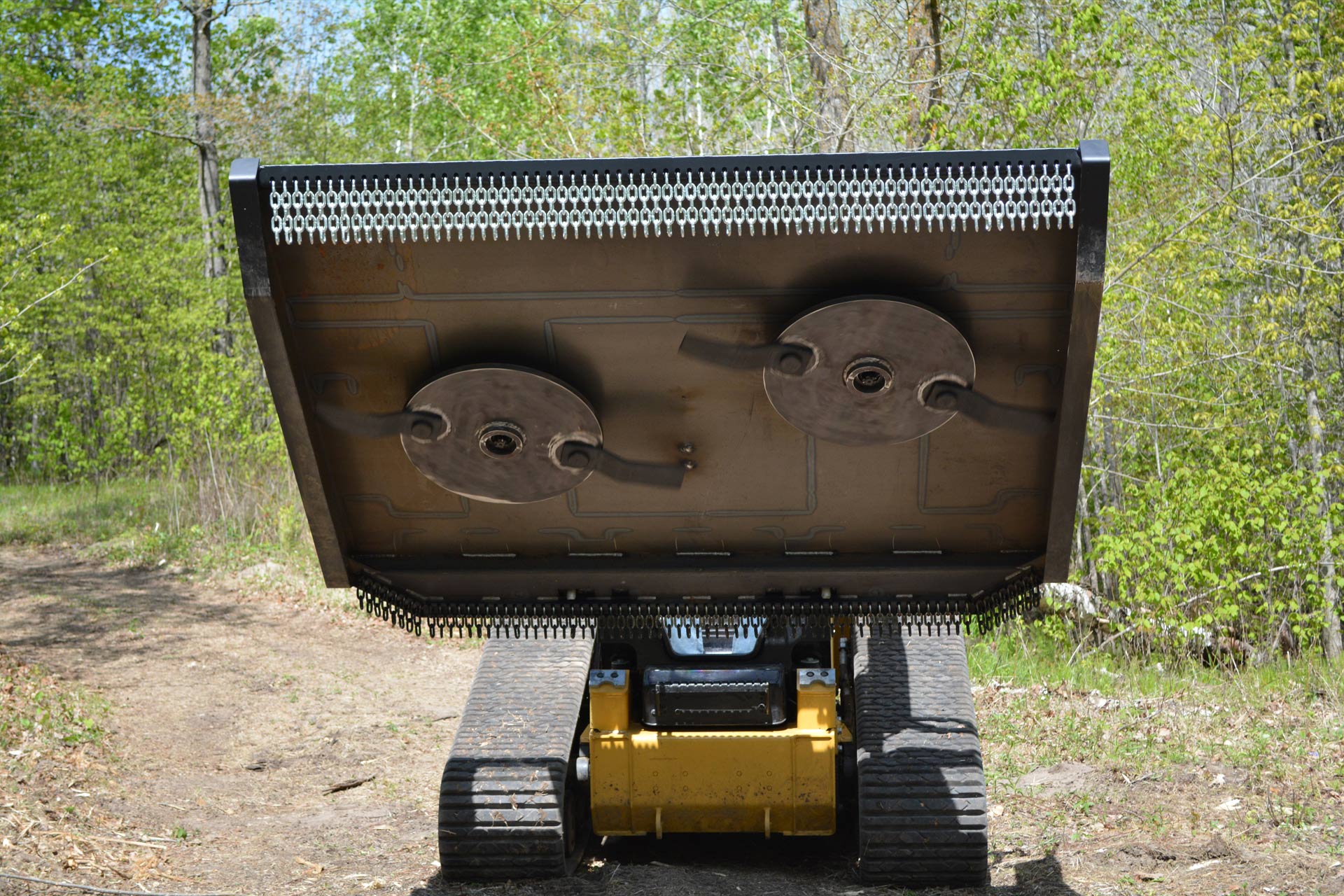

Blade Carrier

(2) 1” GRD-50 discs.
All Brush Wolf blade carriers are CNC balanced for ultra-smooth operation.

Drop blade

Long-Lasting Blades

The Brush Wolf industrial-strength drop-down blades are heat treated, have a milled edge, and are Supertuf coated to stand the test of time.

SuperTuf
Motor-HD

Premium Hydraulic Motor

We paired the top-of-the-line Eaton® Geroler-style hydraulic motor with the most dependable right-angle Omni® gearbox to achieve maximum torque and ideal blade tip speed. This easy-to-maintain and tried-and-true pairing will survive the years of abuse it will see in the field.

Brush cutters with Eaton hydraulic motorOmniGear
Pressure-relief-valve

Motor Protection

Pressure Relief Valves: Added pressure relief valves safeguard your motor from pressure spikes and allow for a faster shutdown.

Grade-2 Shear Bolt: protects the gearbox and driveline from damage.

Gearbox-welded-seal-guard

Gearbox Seal Protection

A welded seal guard collar prevents wire, twine, and vegetation from wrapping around and damaging the gearbox.

Deck-frame

Ultra-Rugged Deck Frame

Here’s why our brush cutters last for life. We build each deck frame from a single piece of formed 1/4" thick heavy-duty steel, never pieced together. This means our frames are consistently better made and more durable, with the elimination of construction errors and frame failure. One-piece frames will always provide superior strength.

SSAB
Clean deck design

Clean Deck Design

Our one-piece deck frame construction creates a “clean deck” design that allows material to glide off, preventing unwanted debris buildup. (Think less mess and easier to clean.)

Weld

Seam Welding

Unlike our competitors, Brush Wolf’s deck and frame construction is fully boxed and continuously welded across each seam for an indestructible, rust-proof support structure.

Boxed-in gusset

Reinforced Gussets

We went above and beyond to make sure our cutters are crazy strong by adding boxed-in gusset reinforcements, extra bracing, and supports.

Powder coating cutters

Powder-Coated Tough

Protected with the most durable finishing process, we powder coat every part to minimize rust, resist scratches, and prevent fading, so you get more life out of your brush cutter.

Brush cutters power coated tough
Blade Access Cover

Blade Access Cover

Easy access to the blade bolts for quick blade replacement.

Couplers and dust caps

Plug + Play Ready

Everything is ready to go upon delivery with the included quick-connect couplers, 90" hydraulic hoses encased in protective wrap, and dust caps to prevent line contamination.

Chain curtain

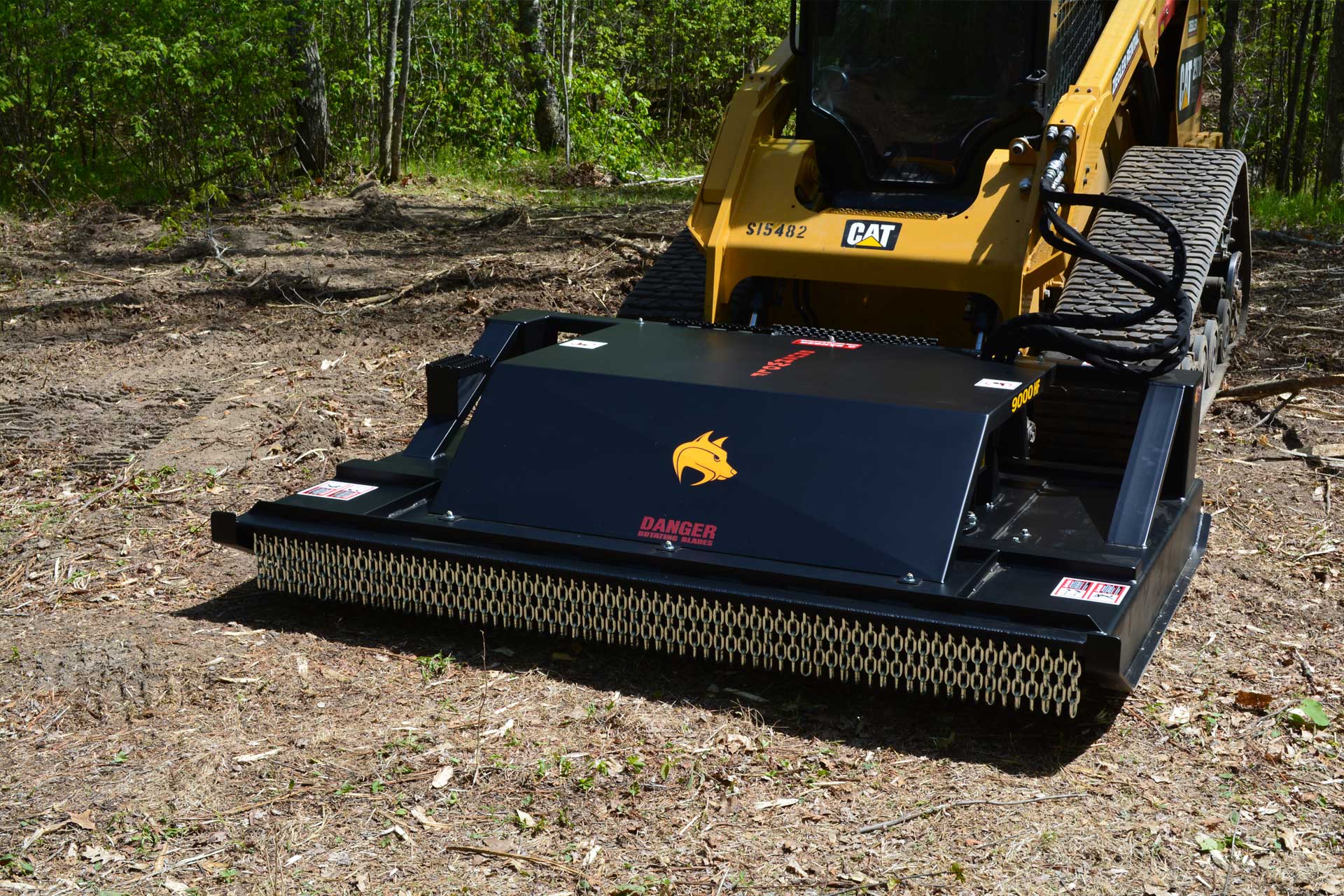

Chain Curtains

5/16” replaceable front and back safety chains contain flying debris to protect you and your cutter and aid in mulching.

Hood

12-gauge steel motor guard protects from damaging impacts.

Lift Limit Chain

A lift limit chain has been added for your safety, which prevents the cutter from being lifting too high.

Safety Steps

Enhancing safety is our thing, so we added two non-slip, serrated metal steps for easy in and out.

Universal quick attach system

Universal Quick Attach System

Time is money, so we made sure our cutters attach quickly to your machine by using the industry-standard Quick Attach system. It will only take seconds to attach/detach your machine with our universal pick-up plate.

Choose color

Choose Your Color

Black, yellow, or make it your own custom color.

Parts available

Parts Always Available

Brush Wolf only uses well-known industry-leading parts and components that are—and will always be—available to order 24/7 at brushwolf.com/parts or by calling 877-390-9857.

PSI cont./int.3,000/3,500
Deck Thickness1/4 in
Motor/Gearbox CouplerMachined steel
Motor ProtectionPressure relief valves, GRD-2 shear bolt
Blade Carrier(2) 1” GRD-50 discs
Blade RotationCounterclockwise
Blades (2) 0.5 x 4 in; updraft
Hood12-ga motor guard
