Compact Series
$5,125.00
| Duty Rating | Compact |
|---|---|
| Cutting Width | 42", 48" |
| Hydraulic Flow Range | 8-25 GPM |
| Max Cutting Diameter | up to 2", up to 3", up to 4" |
| Motor Style | Geroler-style hydraulic motor; right-angle gearbox |
You will easily maneuver through tight spaces and have the flexibility to cut brush.
* The manufacturer’s suggested retail price (MSRP) does not include shipping and taxes. Dealers set actual prices, including invoicing currency.
Description

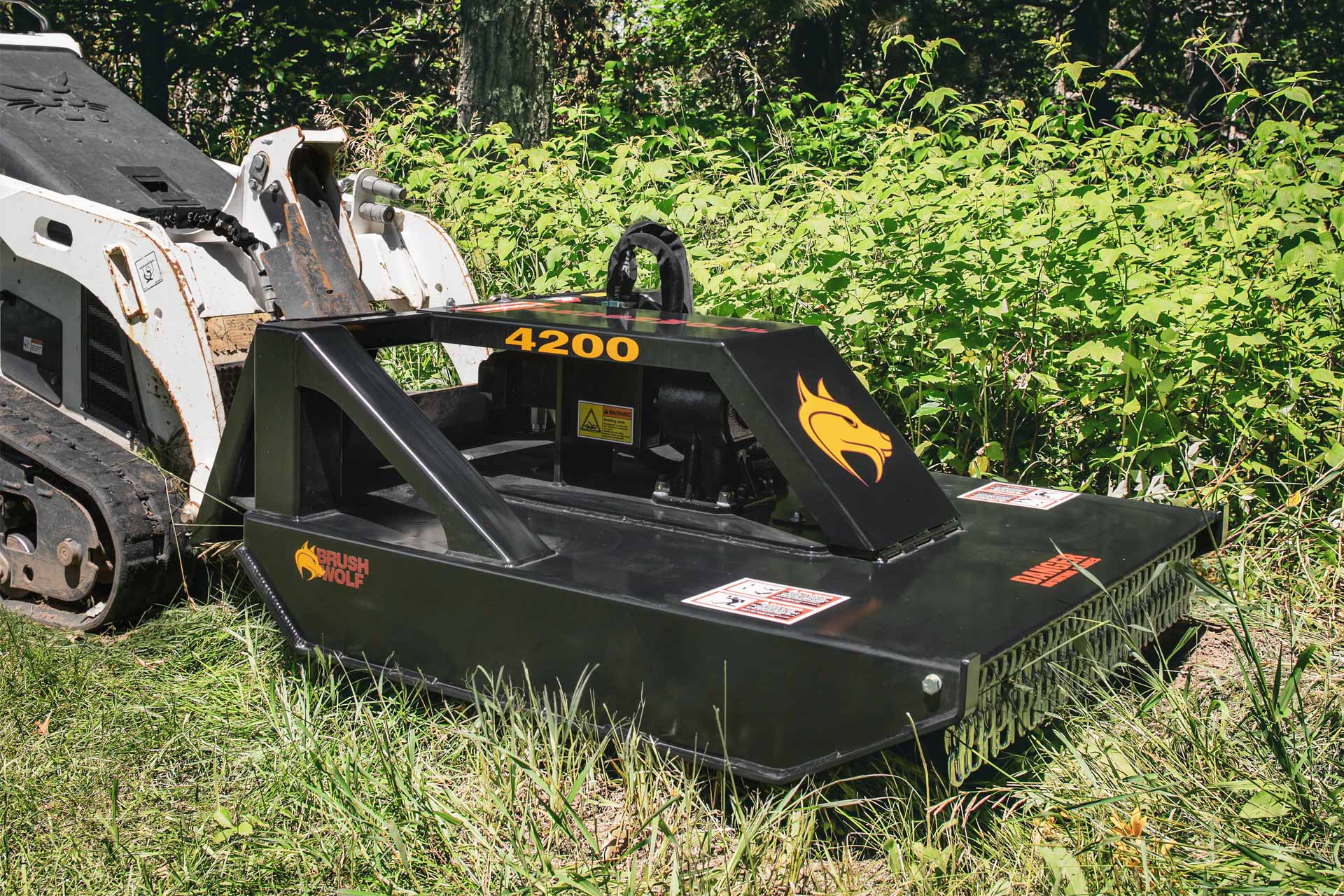

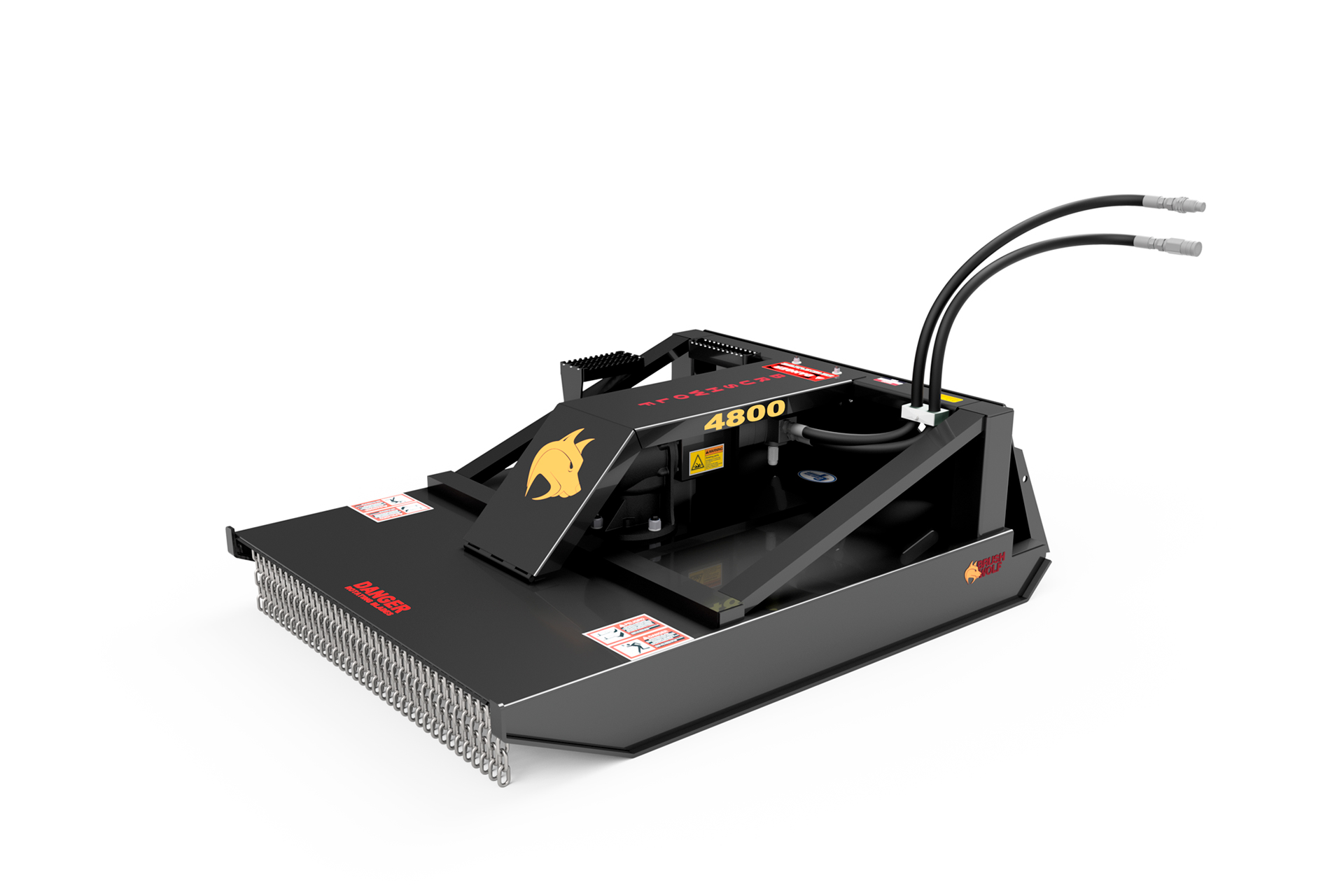

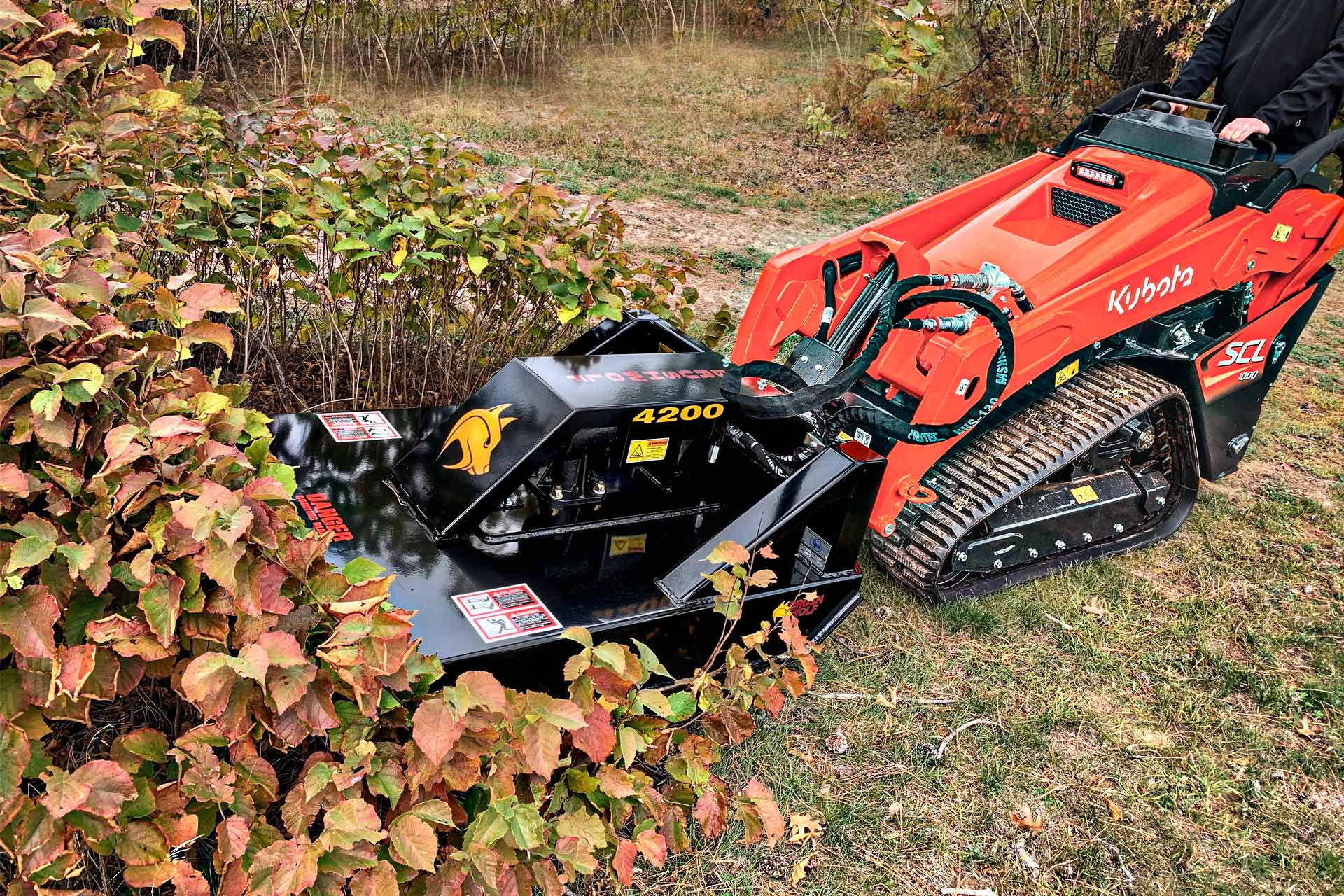

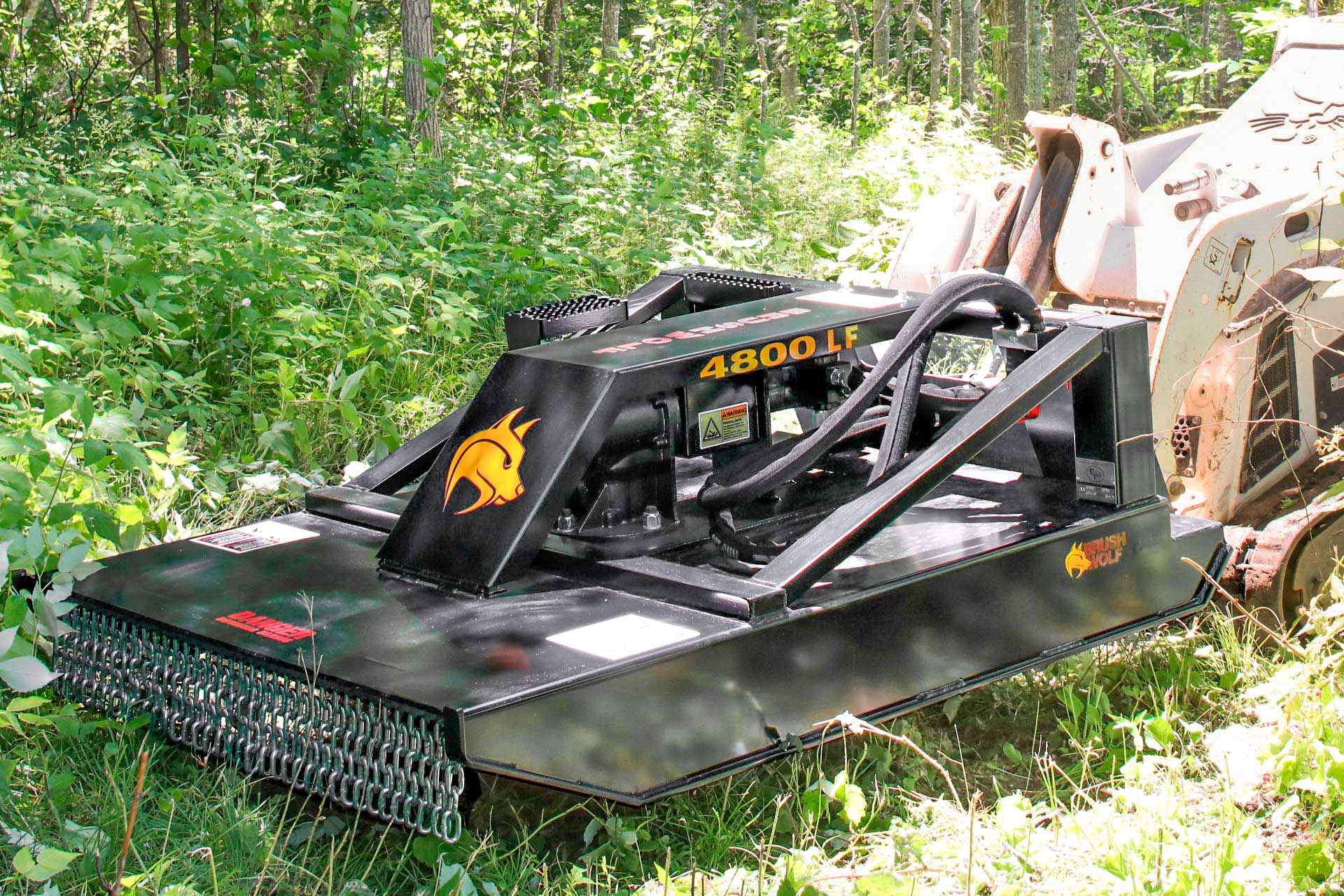

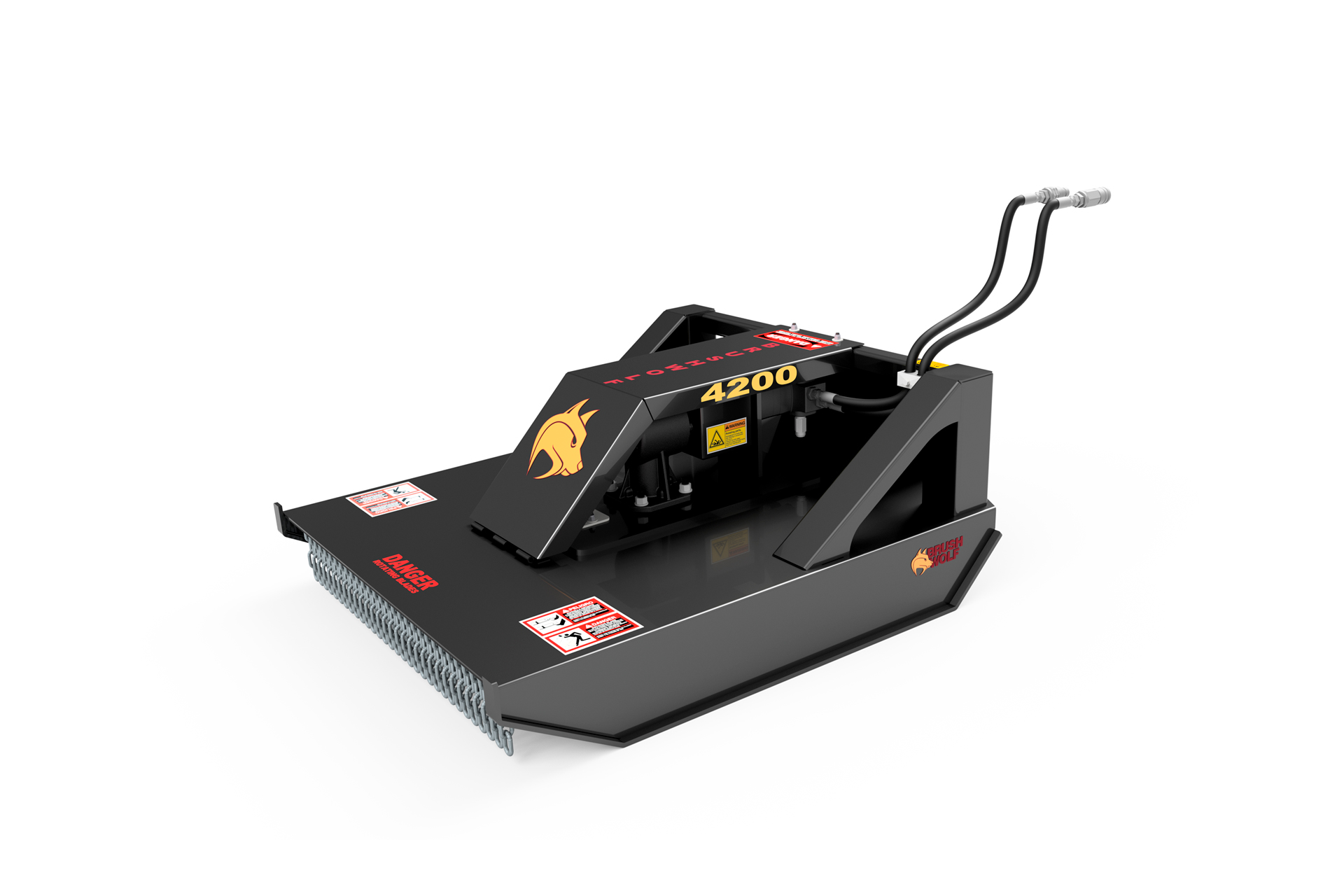

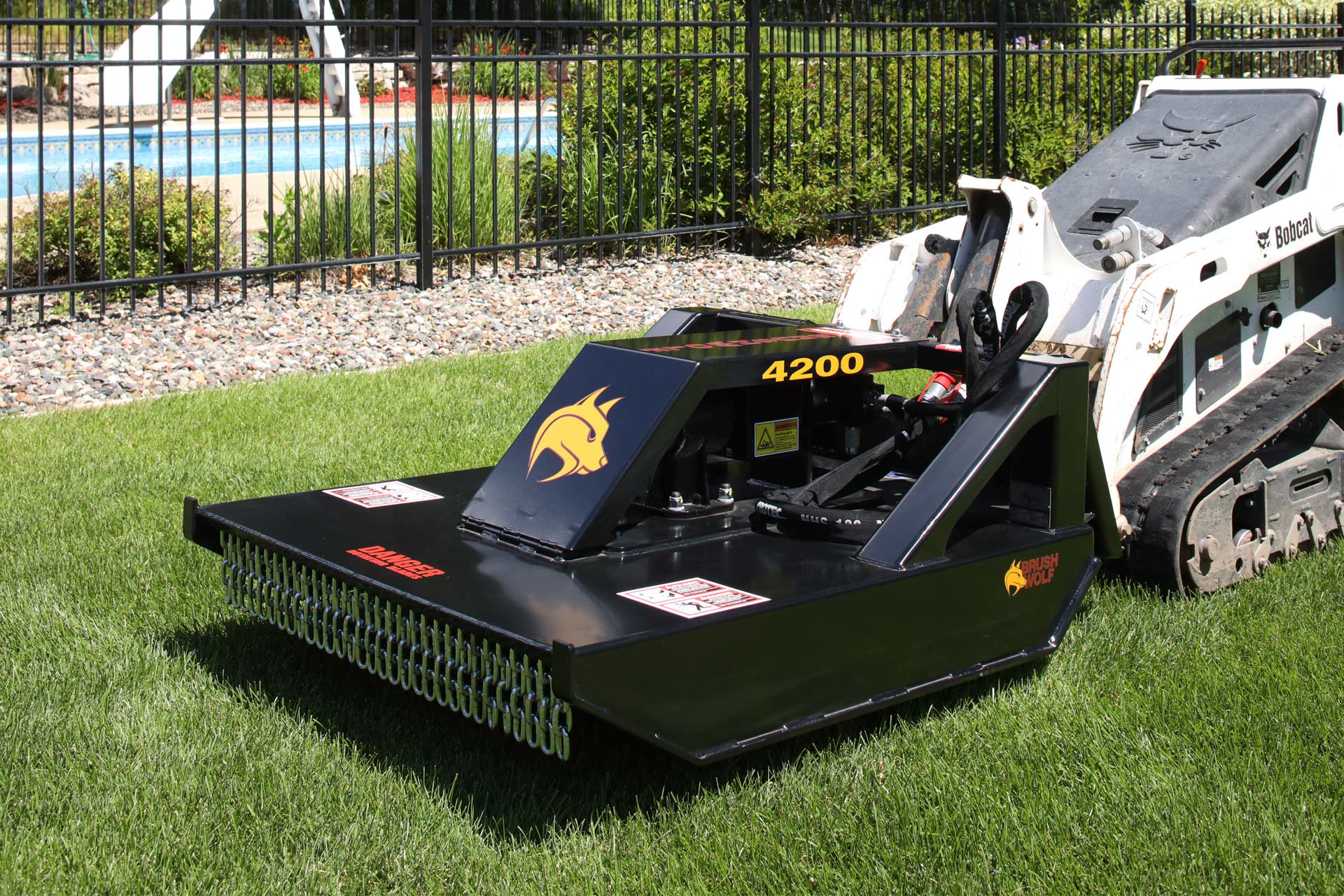

Transform your mini compact utility loader into a robust cutting machine with our compact cutter. Designed to navigate tight spaces, it effortlessly tackles brush and saplings up to 4 inches thick. Ideal for cutting trails or clearing overgrowth, it’s easy to operate and packed with features. The replaceable front chain curtain helps contain debris and aids in mulching. The 4200 model is compatible with compact utility loaders such as Vermeer, Toro Dingo, Ditch Witch, Bobcat MT-50, and others. The 4800 model is versatile, fitting both compact utility loaders and full-size skid loaders, with various pickup plate options available.
Number of Blades
(2) 0.5 x 4 in; updraft
Blade Type
Long-lasting, high-tempered updraft steel blades for lift and mulching action.
Blade Carrier
1” GRD-50 bar.
All Brush Wolf blade carriers are CNC balanced for ultra-smooth operation.
Long-Lasting Blades
The Brush Wolf industrial-strength drop-down blades are heat treated, have a milled edge, and are Supertuf coated to stand the test of time.
Premium Hydraulic Motor
We paired the top-of-the-line Eaton® Geroler-style hydraulic motor with the most dependable right-angle Omni® gearbox to achieve maximum torque and ideal blade tip speed. This easy-to-maintain and tried-and-true pairing will survive the years of abuse it will see in the field.
Motor Protection
Pressure Relief Valves: Added pressure relief valves safeguard your motor from pressure spikes and allow for a faster shutdown.
Grade-2 Shear Bolt: protects the gearbox and driveline from damage.
Gearbox Seal Protection
A welded seal guard collar prevents wire, twine, and vegetation from wrapping around and damaging the gearbox.
Ultra-Rugged Deck Frame
Here’s why our brush cutters last for life. We build each deck frame from a single piece of formed heavy-duty steel, never pieced together. This means our frames are consistently better made and more durable, with the elimination of construction errors and frame failure. One-piece frames will always provide superior strength.
Clean Deck Design
Our one-piece deck frame construction creates a “clean deck” design that allows material to glide off, preventing unwanted debris buildup. (Think less mess and easier to clean.)
Seam Welding
Unlike our competitors, Brush Wolf’s deck and frame construction is fully boxed and continuously welded across each seam for an indestructible, rust-proof support structure.
Reinforced Gussets
We went above and beyond to make sure our cutters are crazy strong by adding boxed-in gusset reinforcements, extra bracing, and supports.
Powder-Coated Tough
Protected with the most durable finishing process, we powder coat every part to minimize rust, resist scratches, and prevent fading, so you get more life out of your brush cutter.
Blade Access Cover
Easy access to the blade bolts for quick blade replacement.

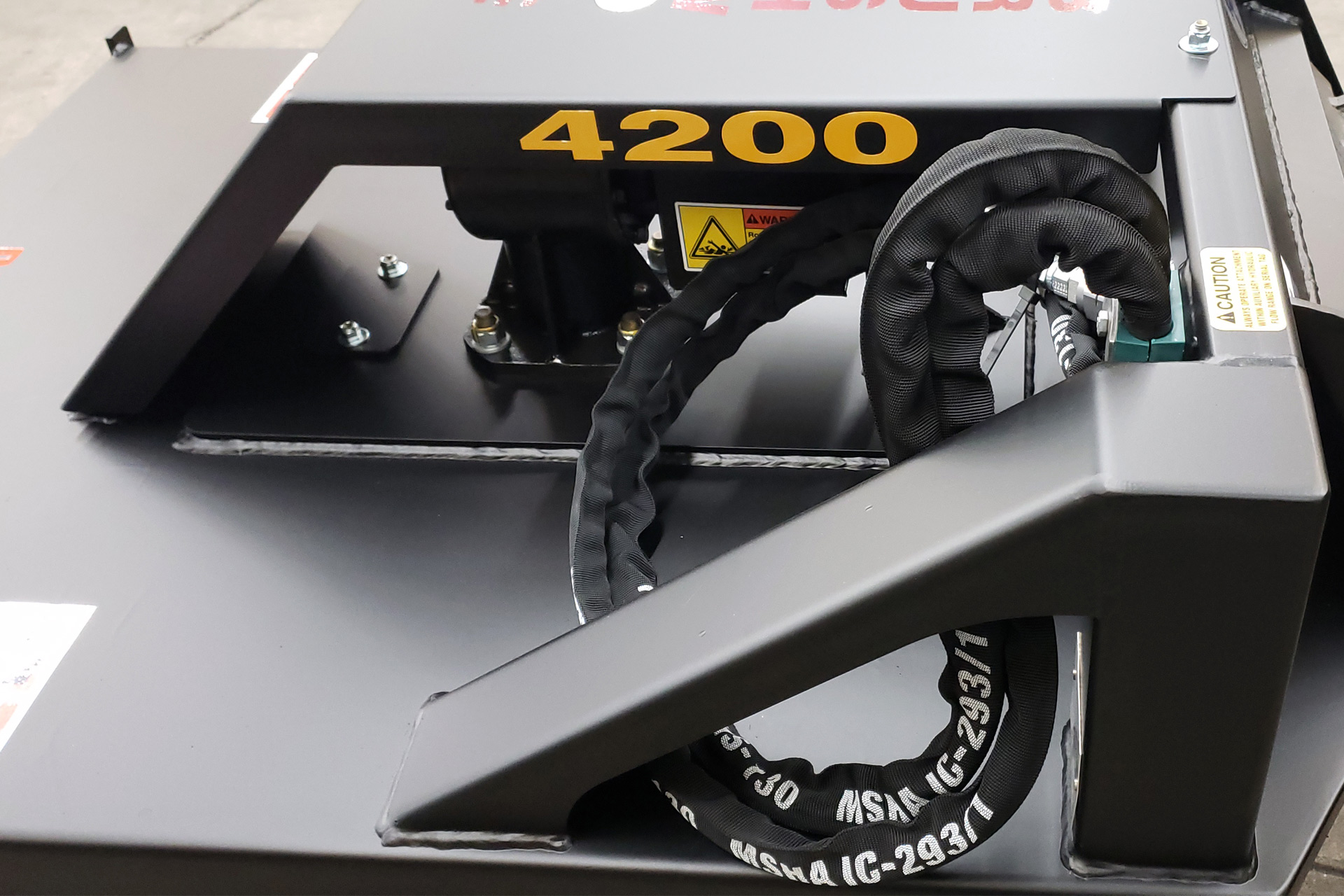

Plug + Play Ready
Everything is ready to go upon delivery with the included quick-connect couplers, hydraulic hoses encased in protective wrap, and dust caps to prevent line contamination.

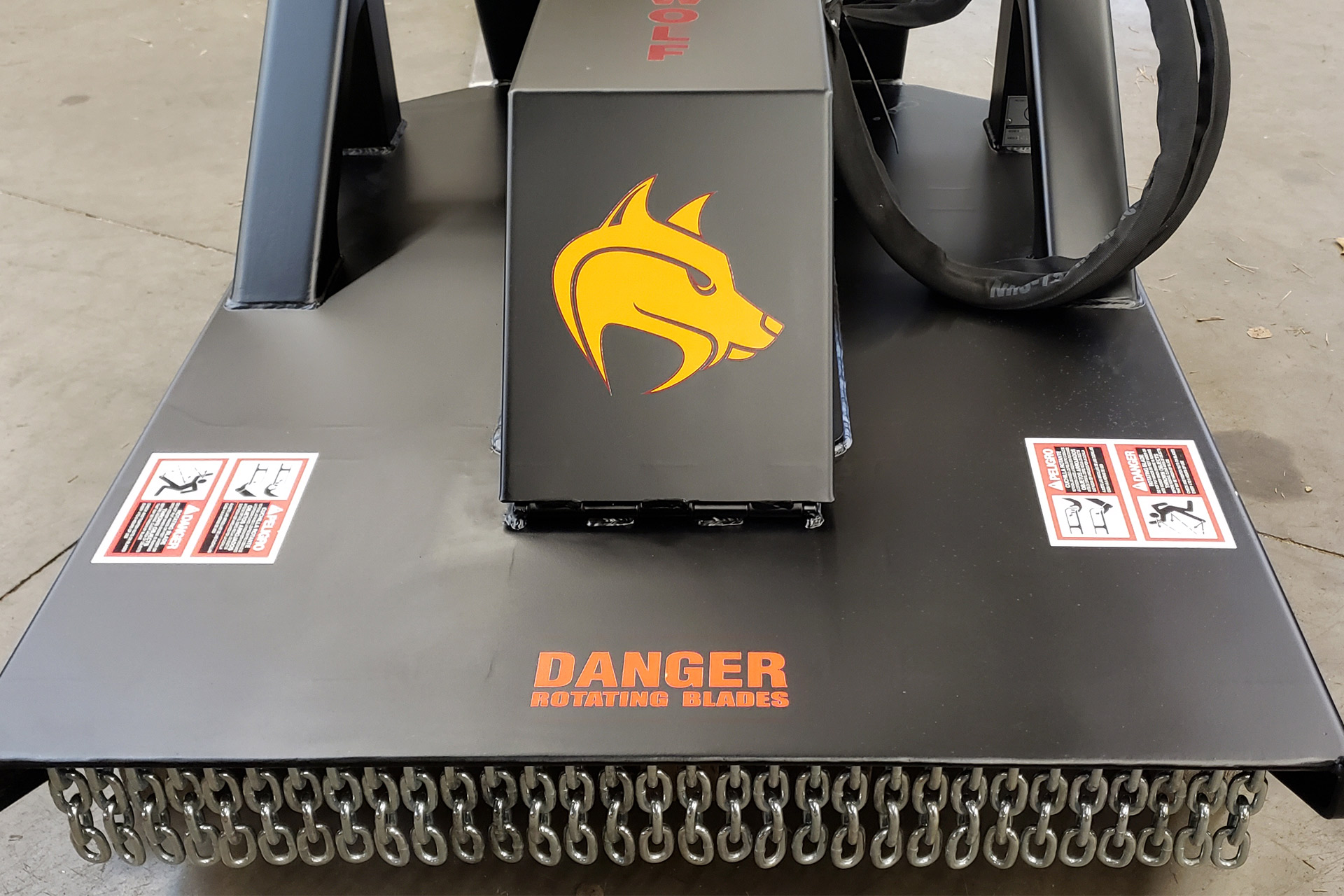

Chain Curtains
5/16” replaceable front and back safety chains contain flying debris to protect you and your cutter and aid in mulching.
Hood
12-gauge steel motor guard protects from damaging impacts. Hinged for easy motor access.
Lift Limit Chain
A lift limit chain has been added to the 4800 for your safety, which prevents the cutter from being lifting too high.
Safety Step
Enhancing safety is our thing, so we added a non-slip, serrated metal step to the 4800 for easy in and out.
Various Pickup Plate Options
We carry all pickup plates so your cutter will be equipped with the exact pickup plate needed for your machine.
Choose Your Color
Black, yellow, or make it your own custom color.
Parts Always Available
Brush Wolf only uses well-known industry-leading parts and components that are—and will always be—available to order 24/7 at brushwolf.com/parts or by calling 877-390-9857.
| PSI cont./int. | 3,000/3,500 |
|---|---|
| Deck Thickness | 4200: 10-ga (.135 in); 4800: 7-ga (.188 in) |
| Motor/Gearbox Coupler | Machined steel |
| Motor Protection | Pressure relief valves, GRD-2 shear bolt |
| Blade Carrier Type | 1” GRD-50 plate |
| Blade Rotation | Counterclockwise |
| Blades | (2) 0.5 x 4 in; updraft |
| Hood | 12-ga hinged, motor guard |
Cuts through heavy brush…The Brush Wolf 4200 is just the ticket if you need to take care of some overwhelmingly overgrown areas. The abilities of this piece of equipment will make you feel incredibly accomplished in a very short period of time.
-
