Open Front / Compact Series

$5,464.00

Duty Rating Compact
Cutting Width 42", 48"
Hydraulic Flow Range 8-25 GPM
Max Cutting Diameter up to 4"
Motor Style Geroler-style hydraulic motor; right-angle gearbox

* The manufacturer’s suggested retail price (MSRP) does not include shipping and taxes. Dealers set actual prices, including invoicing currency.

Description

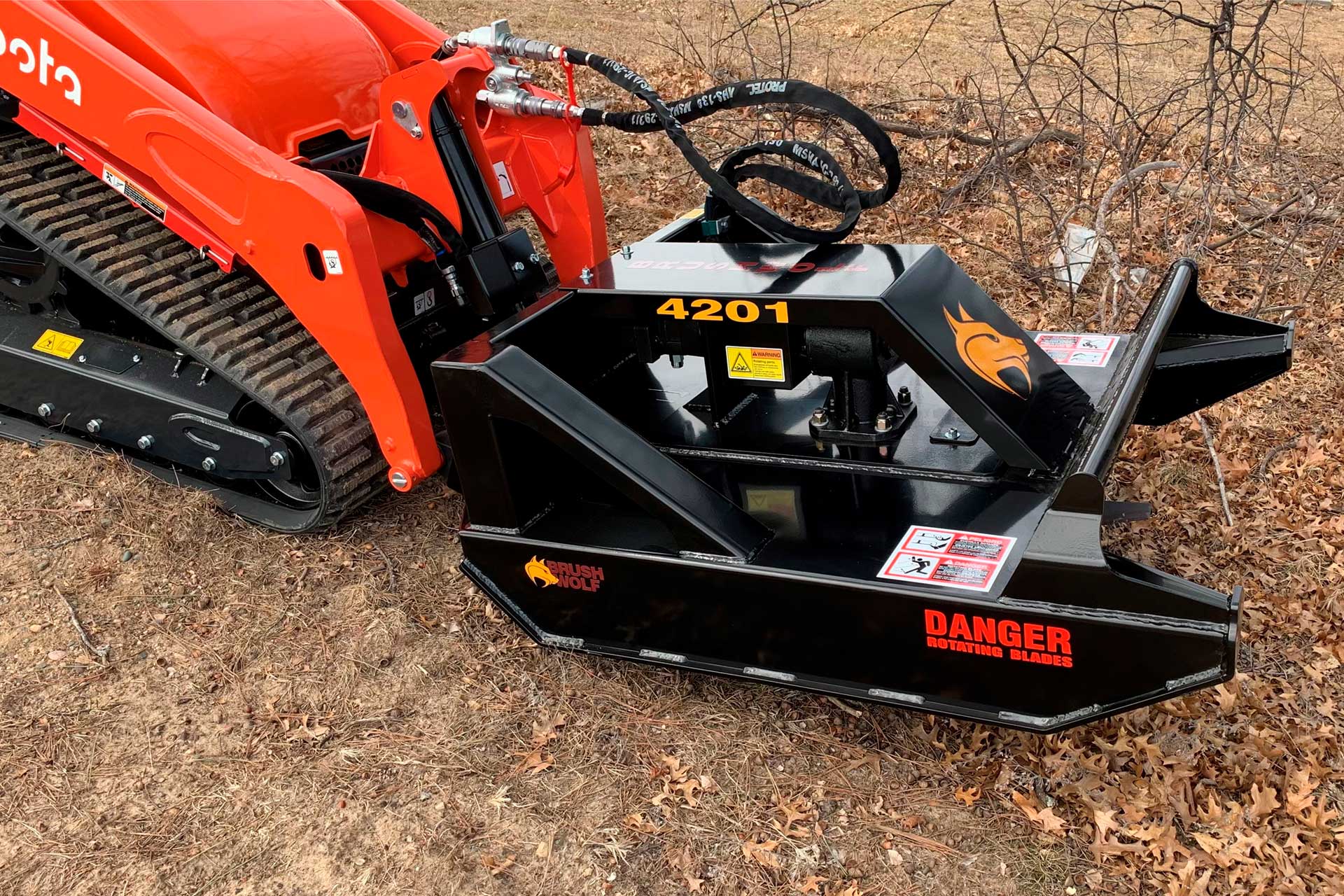

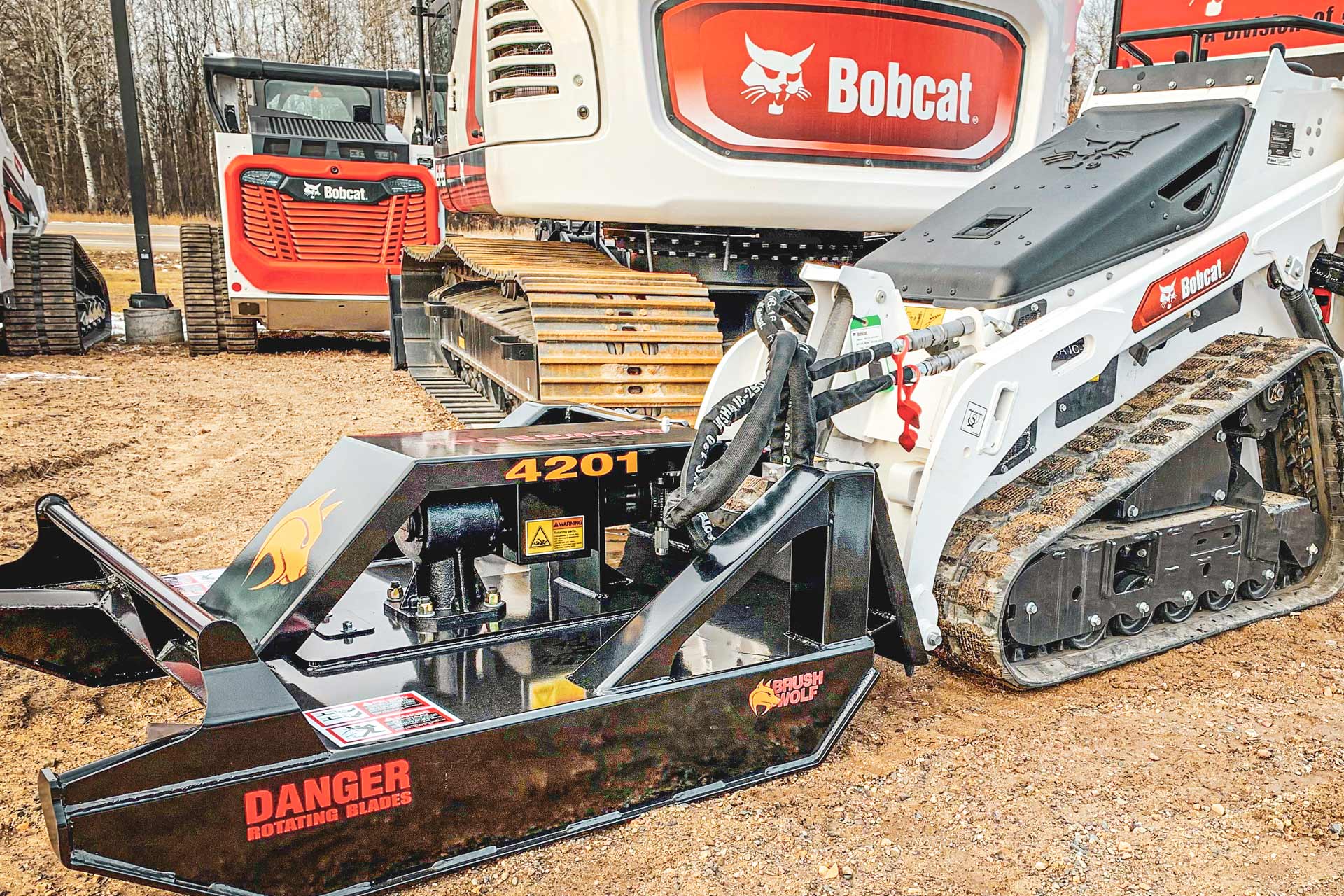

Don’t let the size fool you; these mighty cutters may be small, but they have all the power and performance of their larger models. Made to fit through tight spaces and versatile to use everywhere. The 4200 is built to fit all compact utility loaders like Vermeer, Toro Dingo, Ditch Witch, Bobcat MT-50, and others. The 4800 fits compact utility loaders all the way up to full-size skid loaders, thanks to the various pickup plate options. Both cutters provide the power and movability to mow brush, clear trails, manage overgrowth, and cut saplings up to 4” in diameter.

Model Options

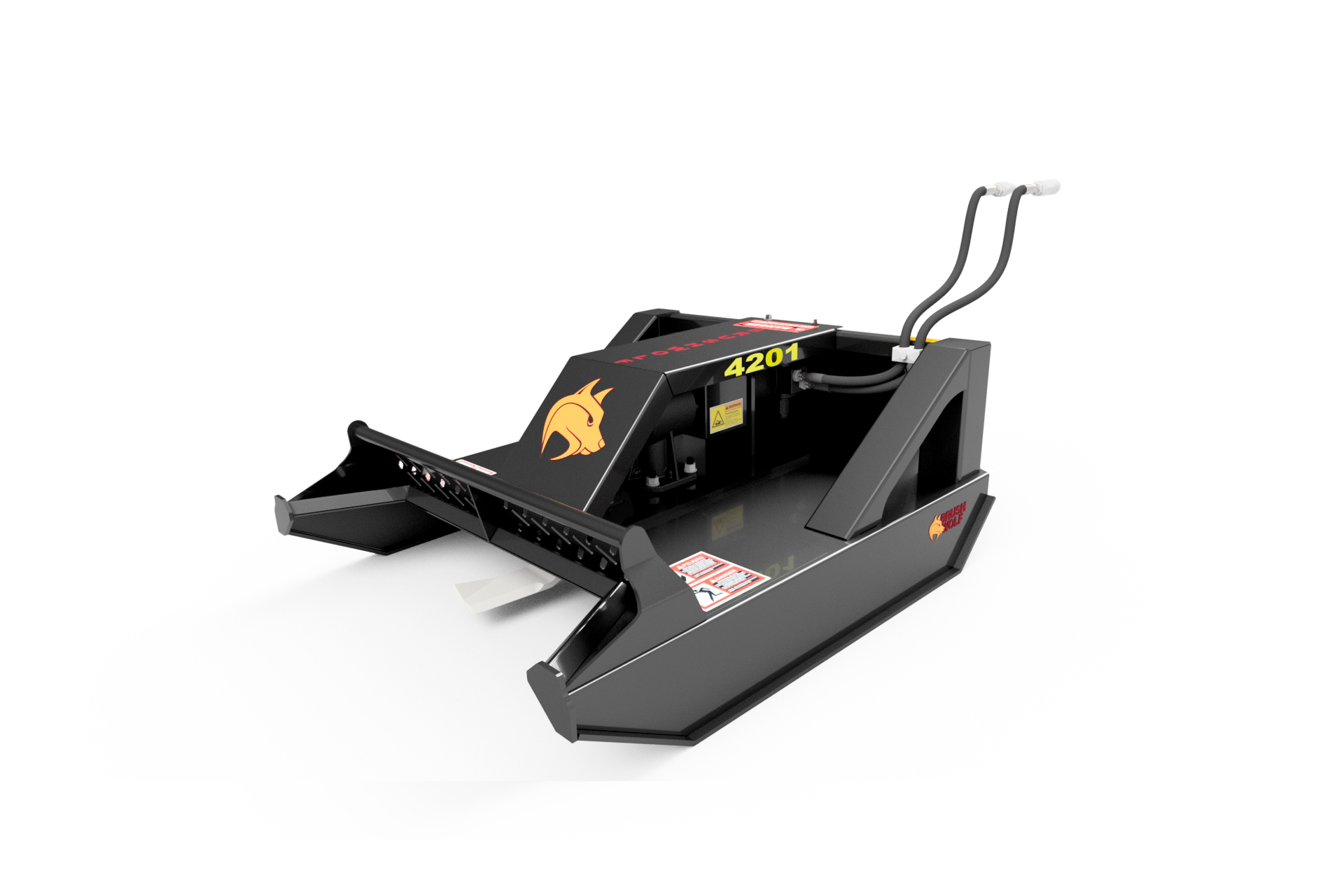

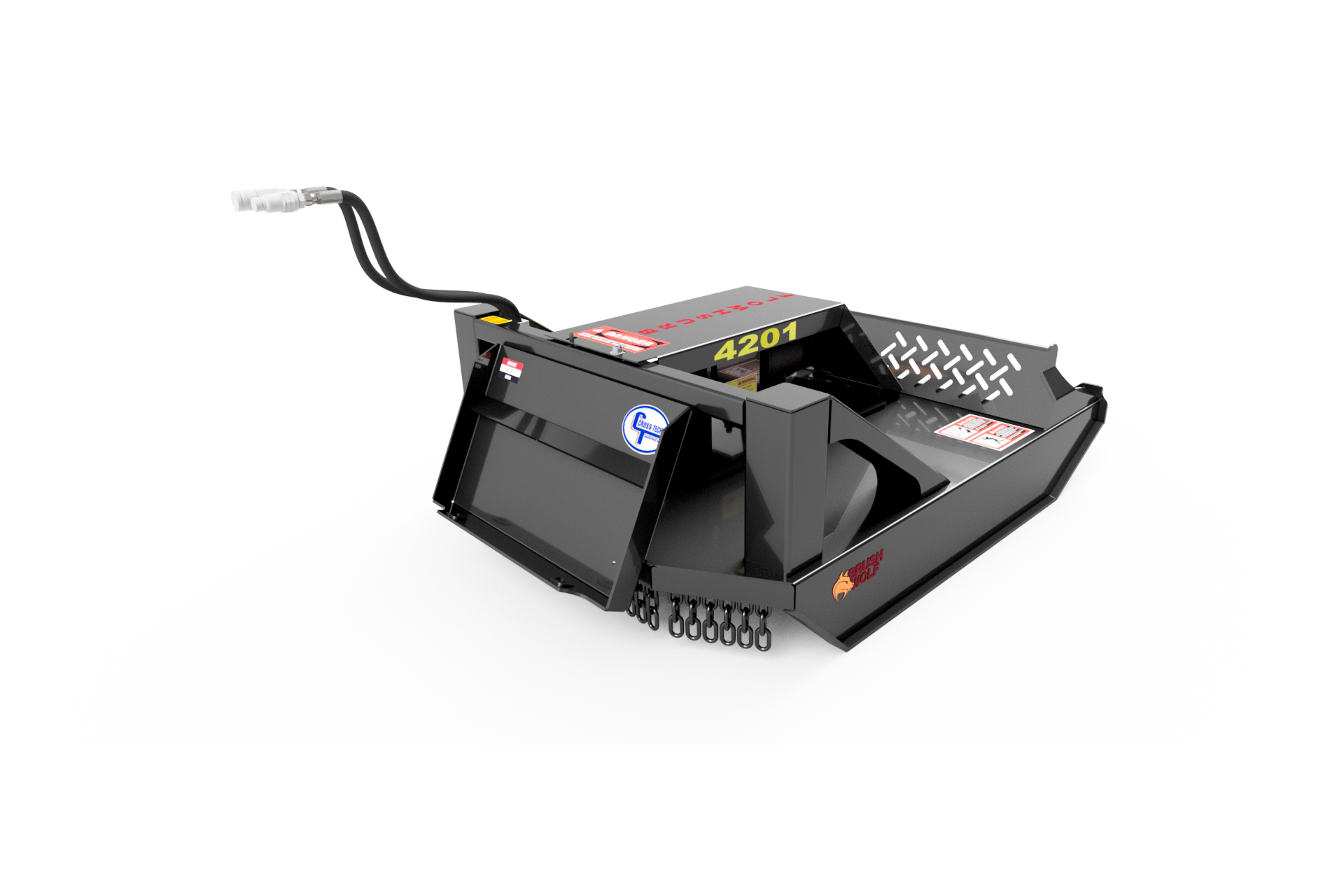

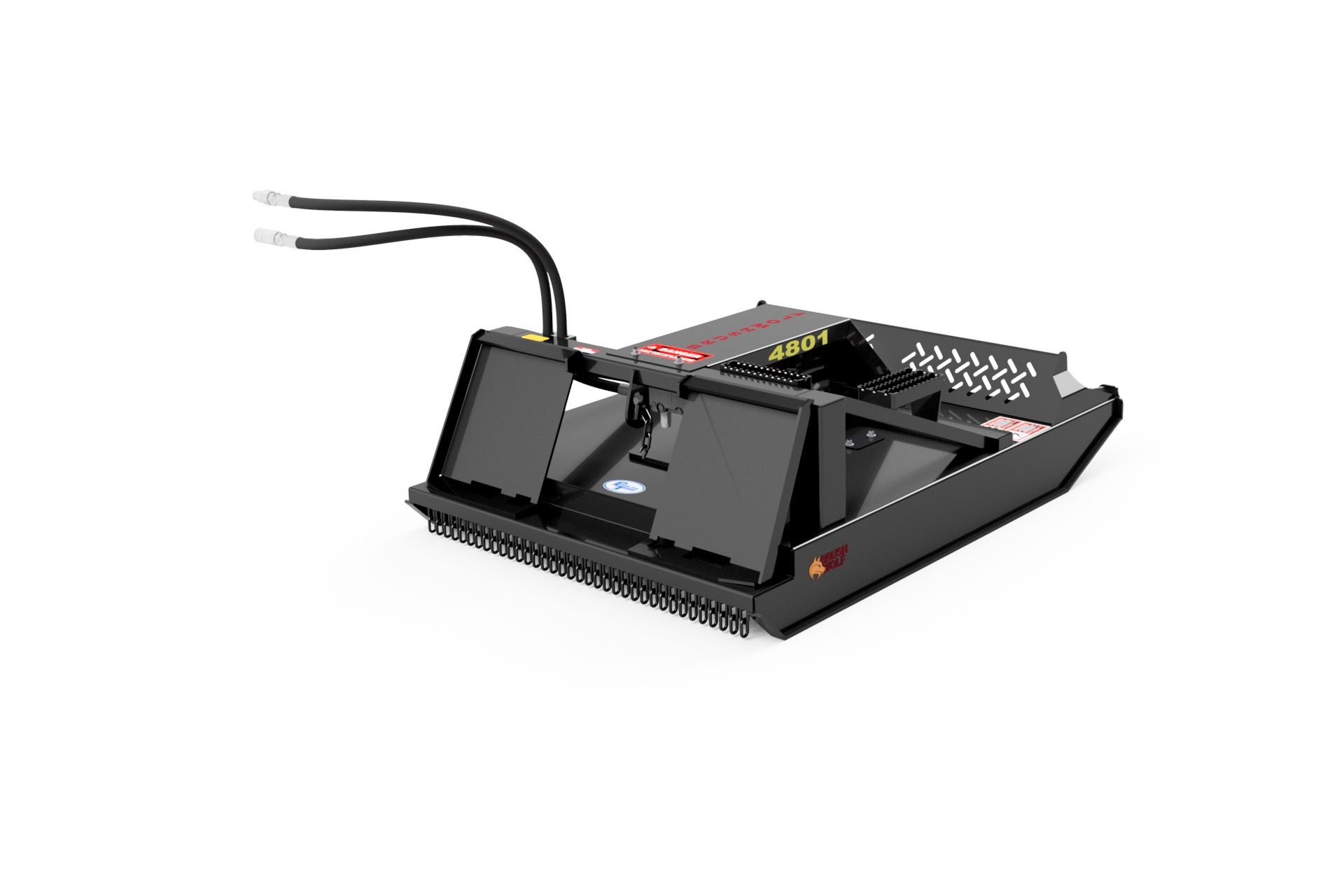

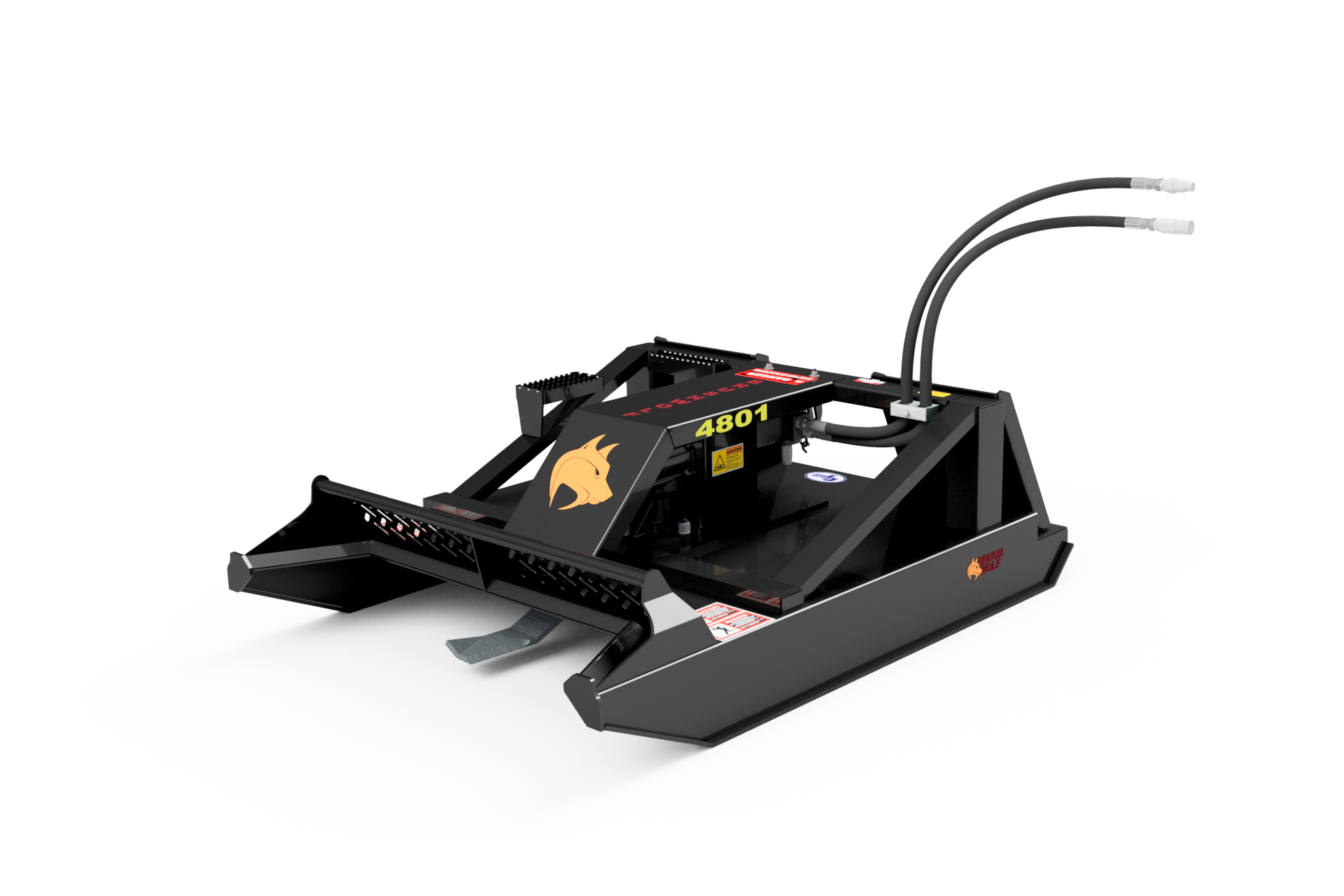

Models 4201 4801 LF 4801 SF
  Low Flow Low Flow Standard Flow
Starting MSRP* $5,464 $6,688 $6,688
Cutting Width 42 in 48 in 48 in
Hydraulic Flow Range 8-20 GPM 8-15 GPM 16-25 GPM
Max Cutting Diameter 2 in 3 in 4 in
Tip Speed 6,500-16,200 ft/min 7,500-14,000 ft/min 11,750-18,400 ft/min
Overall Width 43.75 in 49.75 in 49.75 in
Overall Length 58.25 in 60 in 60 in
Weight 470 lbs 672 lbs 690 lbs

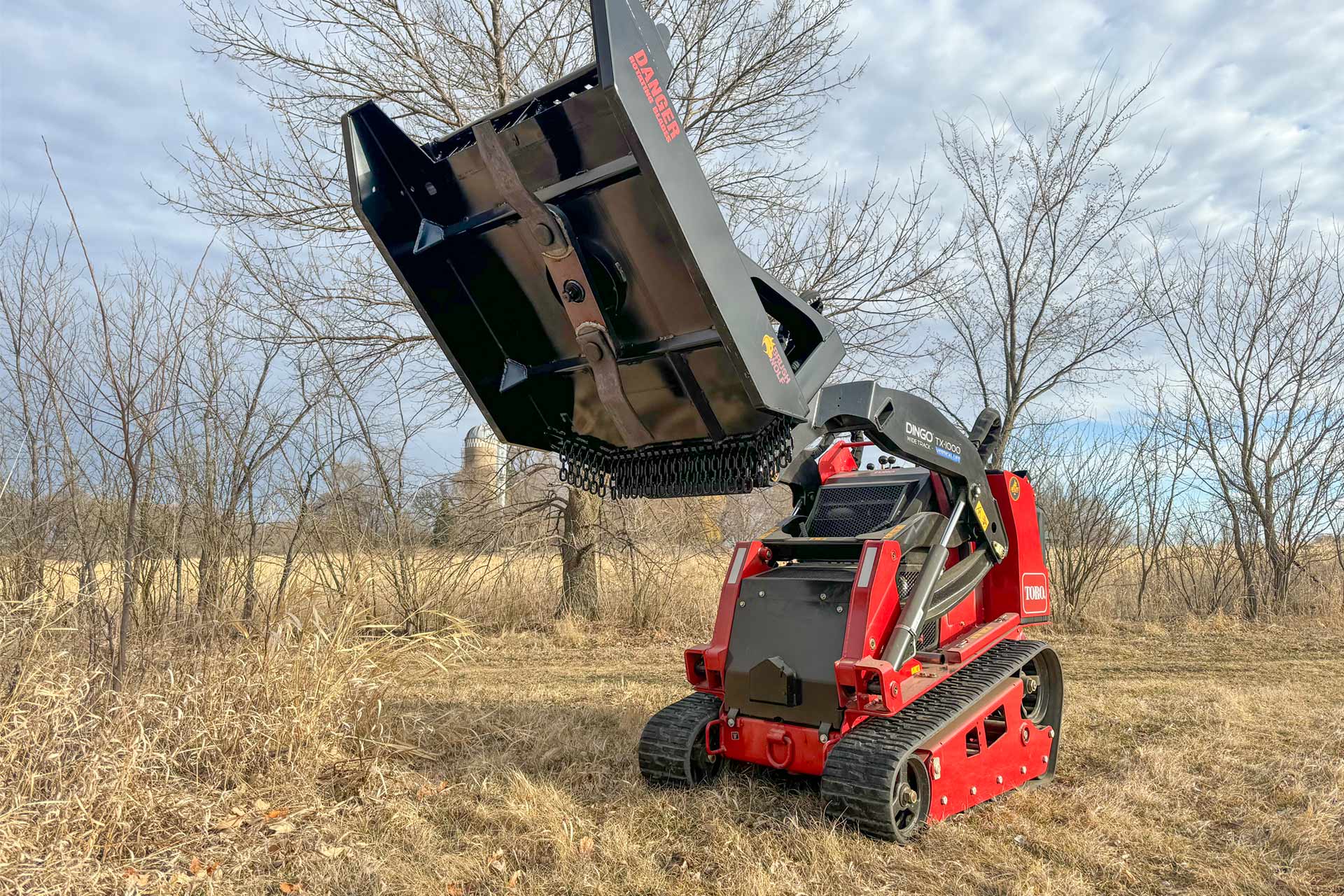

4200 blade carrier

Number of Blades

(2) 0.5 x 4 in; updraft

Blade Type

Long-lasting, high-tempered updraft steel blades for lift and mulching action.

Blade Carrier

1” GRD-50 plate.
All Brush Wolf blade carriers are CNC balanced for ultra-smooth operation.

Drop blade

Long-Lasting Blades

The Brush Wolf industrial-strength drop-down blades are heat treated, have a milled edge, and are Supertuf coated to stand the test of time.

SuperTuf
Motor-HD

Premium Hydraulic Motor

We paired the top-of-the-line Eaton® Geroler-style hydraulic motor with the most dependable right-angle Omni® gearbox to achieve maximum torque and ideal blade tip speed. This easy-to-maintain and tried-and-true pairing will survive the years of abuse it will see in the field.

Brush cutters with Eaton hydraulic motorOmniGear
Pressure-relief-valve

Motor Protection

Pressure Relief Valves: Added pressure relief valves safeguard your motor from pressure spikes and allow for a faster shutdown.

Grade-2 Shear Bolt: protects the gearbox and driveline from damage.

Gearbox-welded-seal-guard

Gearbox Seal Protection

A welded seal guard collar prevents wire, twine, and vegetation from wrapping around and damaging the gearbox.

Deck-frame

Ultra-Rugged Deck Frame

Here’s why our brush cutters last for life. We build each deck frame from a single piece of formed heavy-duty steel, never pieced together. This means our frames are consistently better made and more durable, with the elimination of construction errors and frame failure. One-piece frames will always provide superior strength.

SSAB
Clean deck design 4200

Clean Deck Design

Our one-piece deck frame construction creates a “clean deck” design that allows material to glide off, preventing unwanted debris buildup. (Think less mess and easier to clean.)

Weld

Seam Welding

Unlike our competitors, Brush Wolf’s deck and frame construction is fully boxed and continuously welded across each seam for an indestructible, rust-proof support structure.

Reinforced Gussets

We went above and beyond to make sure our cutters are crazy strong by adding boxed-in gusset reinforcements, extra bracing, and supports.

Powder coating cutters

Powder-Coated Tough

Protected with the most durable finishing process, we powder coat every part to minimize rust, resist scratches, and prevent fading, so you get more life out of your brush cutter.

Brush cutters power coated tough

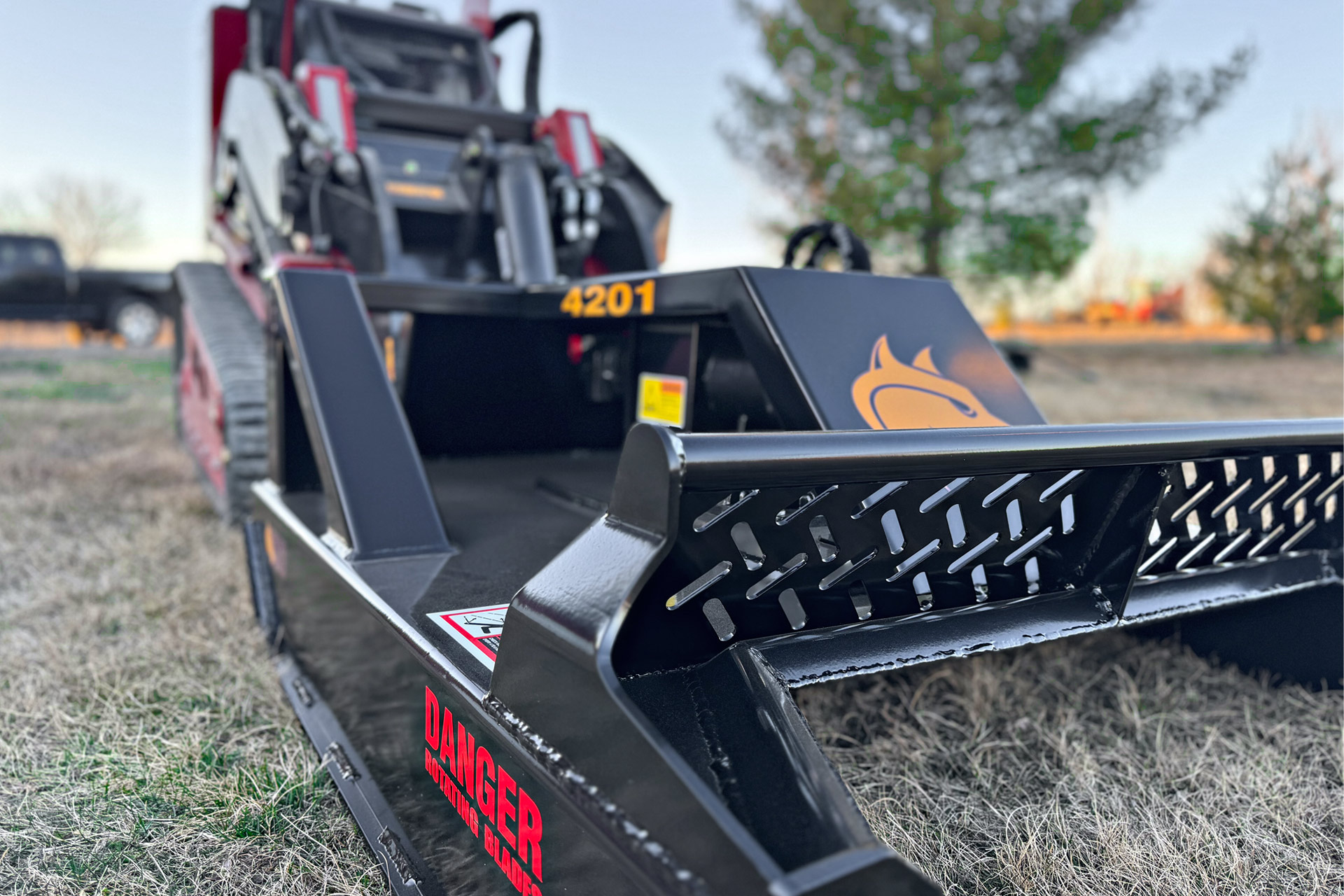

Open-front brush mower push bar

Push Bar

Let’s help “feed” the cutter with a welded push bar to knock down taller vegetation and enhance the mowing capabilities.

Open-front mower push bar

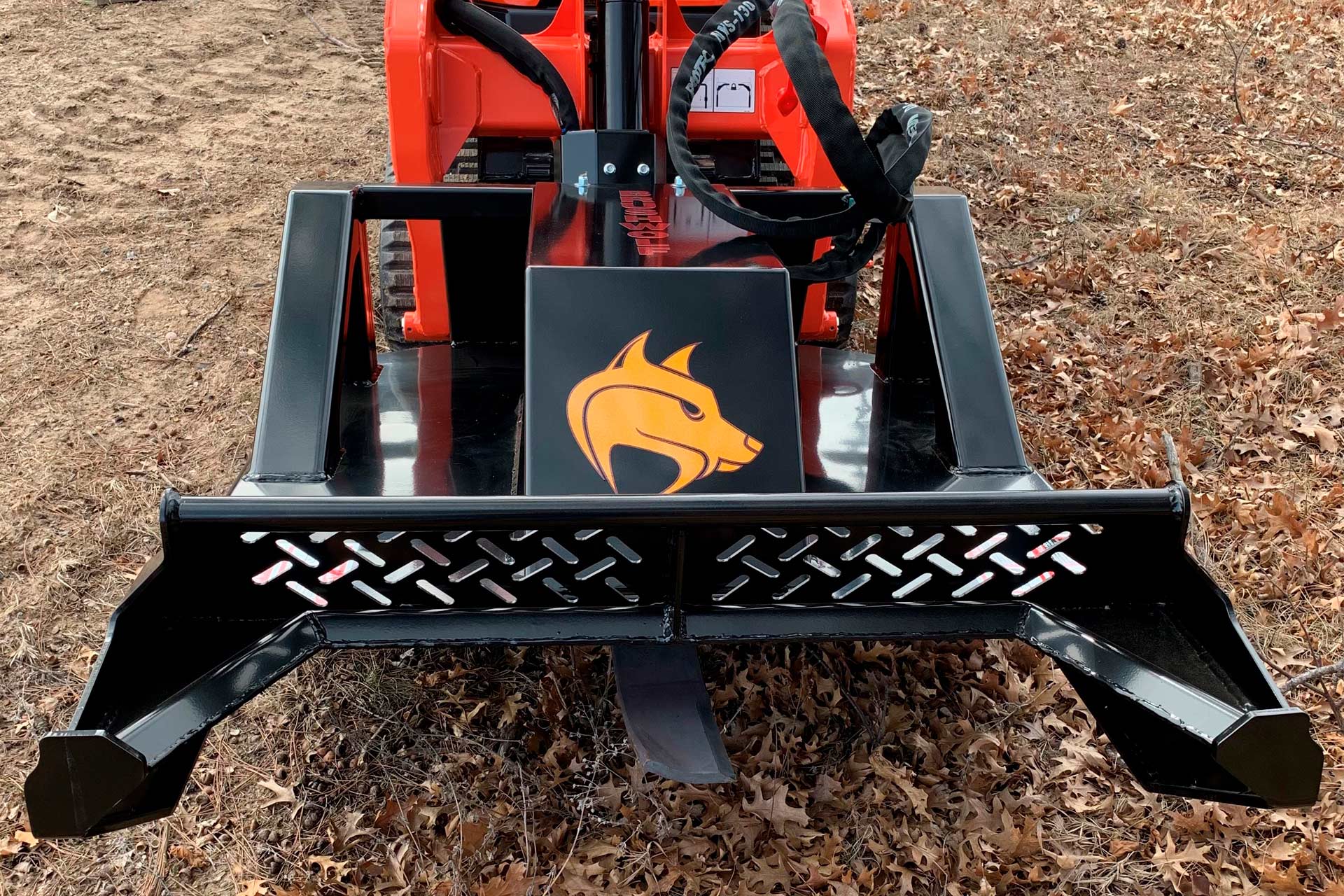

Slotted Front Shield

Slotted front shield provides increased visibility while protecting the operator from debris.

Blade Access Cover

Blade Access Cover

Easy access to the blade bolts for quick blade replacement.

Couplers and dust caps

Plug + Play Ready

Everything is ready to go upon delivery with the included quick-connect couplers, hydraulic hoses encased in protective wrap, and dust caps to prevent line contamination.

Brush mower rear curtain chair

Chain Curtain

Chains hanging from the rear of the cutter prevent debris from being discharged.

Brush mower hood

Hood

12-gauge steel motor guard protects from damaging impacts. Hinged for easy motor access.

Lift Limit Chain

A lift limit chain has been added to the 4801 for your safety, which prevents the cutter from being lifting too high.

Safety step 4800

Safety Step

Enhancing safety is our thing, so we added a non-slip, serrated metal step to the 4801 for easy in and out.

Universal quick attach system

Quick Attach System

Time is money, so we made sure our cutters attach quickly to your machine by using the industry-standard Quick Attach system. It will only take seconds to attach/detach your machine with our universal pick-up plate.

Choose color

Choose Your Color

Black, yellow, or make it your own custom color.

Parts available

Parts Always Available

Brush Wolf only uses well-known industry-leading parts and components that are—and will always be—available to order 24/7 at brushwolf.com/parts or by calling 877-390-9857.

PSI cont./int.3,000/3,500
Deck Thickness4201: 10-ga (.135 in); 4801: 7-ga (.188 in)
Motor/Gearbox CouplerMachined steel
Motor ProtectionPressure relief valves, GRD-2 shear bolt
Blade Carrier Type1” GRD-50 plate
Blade RotationCounterclockwise
Blades (2) 0.5 x 4 in; updraft
Hood12-ga hinged, motor guard
