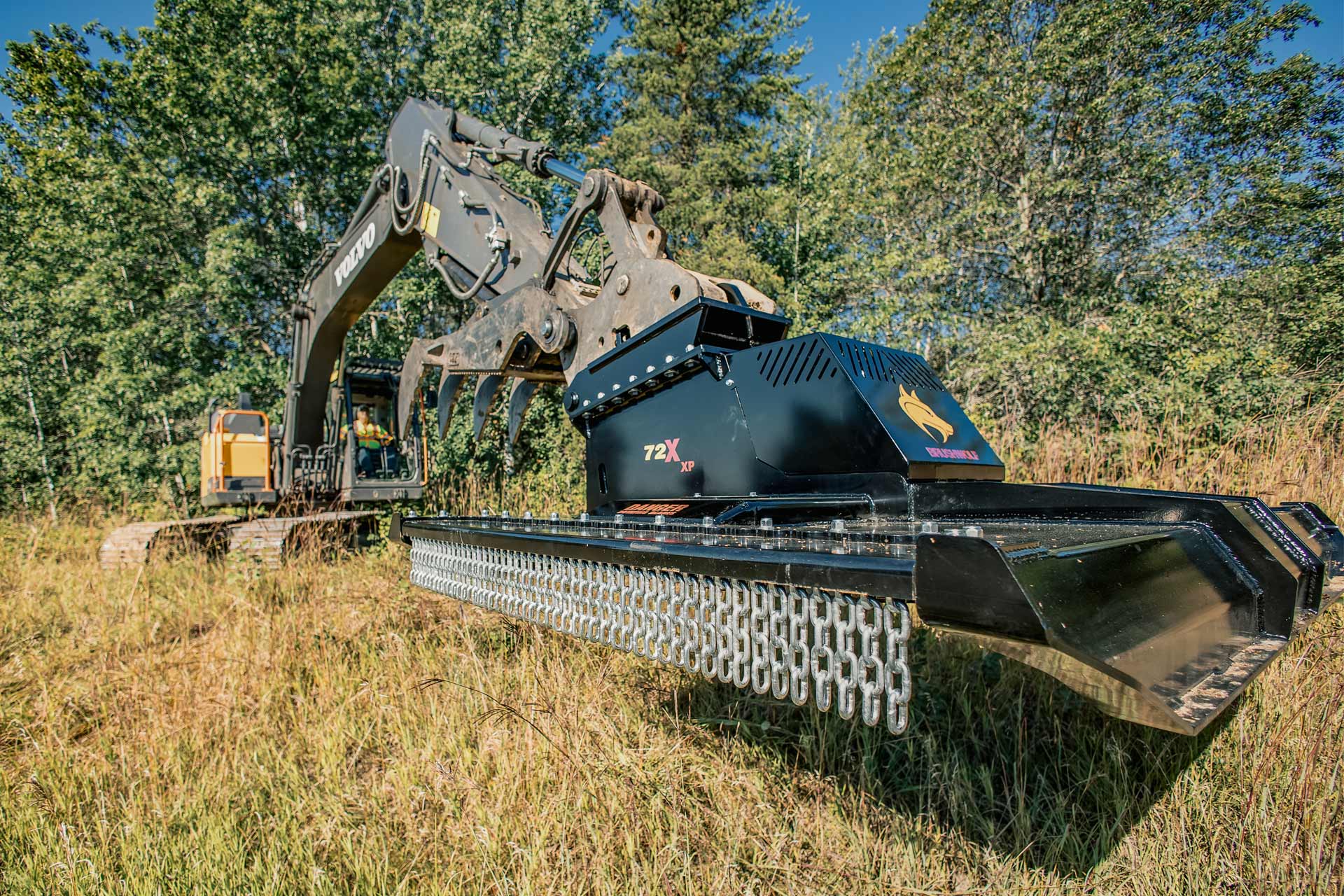

Full-Size Heavy-Duty X-Series

$14,295.00

Duty Rating Heavy-Duty
Cutting Width 60" or 72"
Hydraulic Flow Range 20-45 GPM
Max Cutting Diameter up to 10"
Motor Style Direct-drive radial piston motor

* The manufacturer’s suggested retail price (MSRP) does not include shipping and taxes. Dealers set actual prices, including invoicing currency.

Description

A true workhorse built tough for industrial and commercial applications. These bad boys clear brush quickly and efficiently to improve your ROI and increase profit. You can rely on these cutters to consistently tackle heavy brush and trees up to 8” in diameter. Tip speed and torque are optimum for efficient cutting with a massive 1” blade carrier and three high-tempered steel blades.

Model Options

Models 60X HD 60X HD 60X XP 60X XP 72X HD 72X HD 72X XP 72X XP
  3-Blade Carrier 4-Blade Carrier 3-Blade Carrier 4-Blade Carrier 3-Blade Carrier 4-Blade Carrier 3-Blade Carrier 4-Blade Carrier
Starting MSRP*
Cutting Width 60 in 60 in 60 in 60 in 72 in 72 in 72 in 72 in
Hydraulic Flow Range 20-32 GPM 20-32 GPM 33-45 GPM 33-45 GPM 23-32 GPM 23-32 GPM 33-45 GPM 33-45 GPM
Max Cutting Diameter 10 in 10 in 10 in 10 in 10 in 10 in 10 in 10 in
Tip Speed 9,500-15,100 ft/min 9,500-15,100 ft/min 12,200-16,600 ft/min 12,200-16,600 ft/min 10,300-14,300 ft/min 10,300-14,300 ft/min 13,200-18,000 ft/min 13,200-18,000 ft/min
Overall Width 72.25 in 72.25 in 72.25 in 72.25 in 82.188 in 82.188 in 82.188 in 82.188 in
Overall Length 74.50 in 74.50 in 74.50 in 74.50 in 86.813 in 86.813 in 86.813 in 86.813 in
Weight 1,730 lbs 1,940 lbs 1,730 lbs 1,940 lbs 2,080 lbs 2,330 lbs 2,080 lbs 2,330 lbs
X-full-size-heavy-duty-drop-blade-carrier

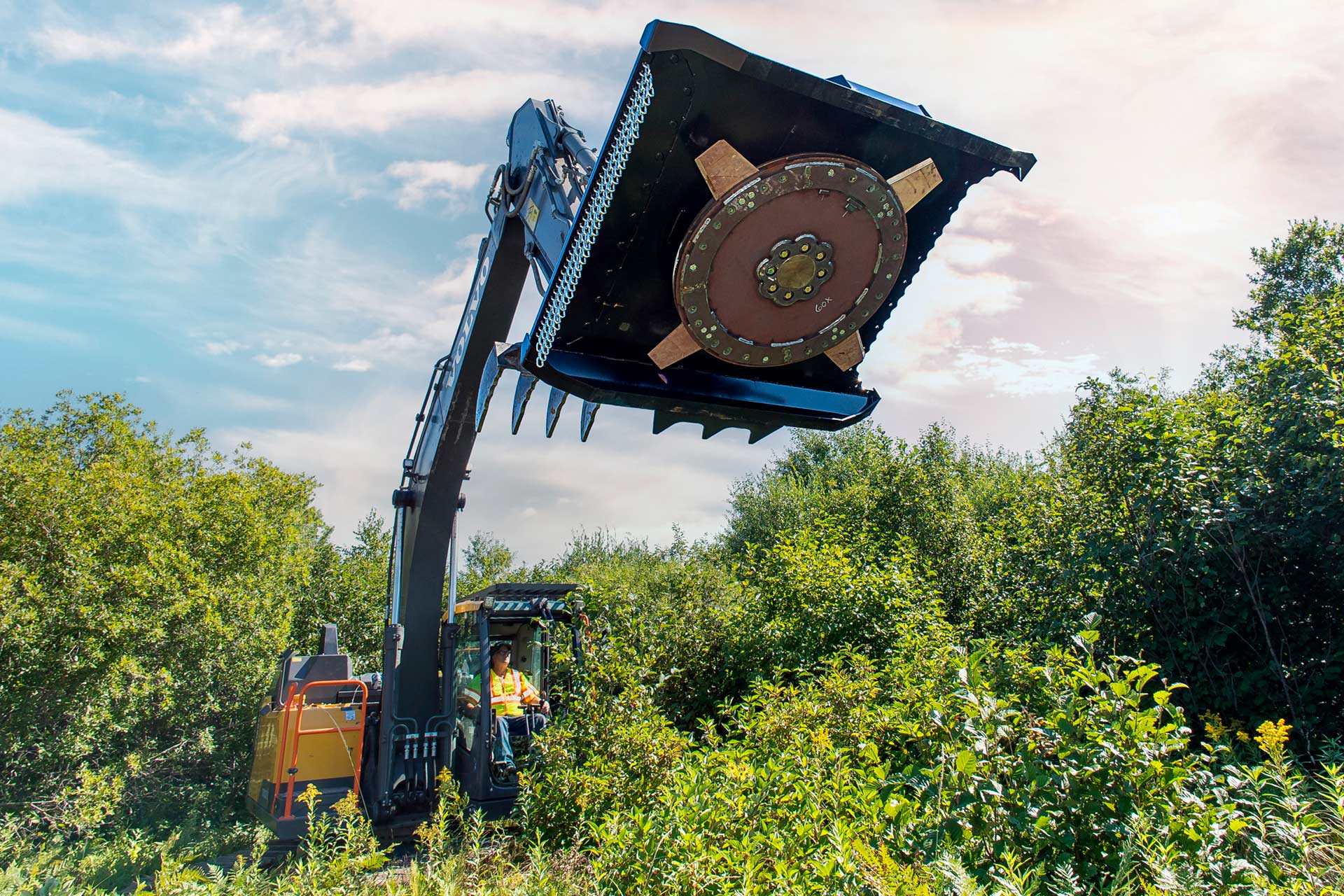

3-BLADE CARRIER

STANDARD

Number of Blades

(3) drop blades: 0.625 x 5"; non-updraft

Blade Type

High-tempered non-updraft steel blades to cut and discharge material quickly.

Blade Carrier

1” GRD-50 disc.
All Brush Wolf blade carriers are CNC balanced for ultra-smooth operation.

X-full-size-heavy-duty-flat-blade-carrier

4-BLADE CARRIER

OPTIONAL

Number of Blades

(4) Hardox® 500 flat blades: 0.625 x 5.188"; non-updraft

Blade Type

High-tempered non-updraft steel blades to cut and discharge material quickly.

Blade Carrier

Two-piece 5/8" steel disc propriety blade system exclusive to Brush Wolf. Blades are secured between two 5/8” thick high-strength steel discs.
All Brush Wolf blade carriers are CNC balanced for ultra-smooth operation.

Drop blade

Long-Lasting Blades

The Brush Wolf industrial-strength drop-down blades are heat treated, have a milled edge, and are Supertuf coated to stand the test of time.

SuperTuf

Direct-Drive Piston Motor

Experience the power of the direct-drive SAI® radial piston motor. With higher torque, you’ll get more cutting power, quicker recovery time, and less bogging down when accelerating through thick brush.

SAI
Bearing-housing

Massive Bearing Housing

We pair our direct-drive radial piston motor with a robust Eskridge® bearing housing that has a 3.75” shaft diameter and patented shaft retention system.

Eskridge
Pressure-relief-valve

Motor Protection

Pressure Relief Valves: Added pressure relief valves safeguard your motor from pressure spikes and allow for a faster shutdown.

Case Drain is included to relieve excess pressure build-up and protect the motor.

Gearbox-welded-seal-guard

Gearbox Seal Protection

A welded seal guard collar prevents wire, twine, and vegetation from wrapping around and damaging the gearbox.

Deck-frame

Ultra-Rugged Deck Frame

Here’s why our brush cutters last for life. We build each deck frame from a single piece of formed 1/4" thick heavy-duty steel, never pieced together. This means our frames are consistently better made and more durable, with the elimination of construction errors and frame failure. One-piece frames will always provide superior strength.

SSAB
Weld

Seam Welding

Unlike our competitors, Brush Wolf’s deck and frame construction is fully boxed and continuously welded across each seam for an indestructible, rust-proof support structure.

Boxed-in gusset

Reinforced Gussets

We went above and beyond to make sure our cutters are crazy strong by adding boxed-in gusset reinforcements, extra bracing, and supports.

Powder coating cutters

Powder-Coated Tough

Protected with the most durable finishing process, we powder coat every part to minimize rust, resist scratches, and prevent fading, so you get more life out of your brush cutter.

Brush cutters power coated tough
Blade Access Cover

Blade Access Cover

Easy access to the blade bolts for quick blade replacement.

Couplers and dust caps

Plug + Play Ready

Everything is ready to go upon delivery with the included quick-connect couplers, 90” hydraulic hoses encased in protective wrap, and dust caps to prevent line contamination.

Hoses routed 60X

Advanced Hose Routing System

We took the time to devise a well-thought-out hose routing system based on real-life situations. Using guides and STAUFF clamps, our hydraulic lines can be routed to either side. So, you choose which side works best for your machine.

Stauff

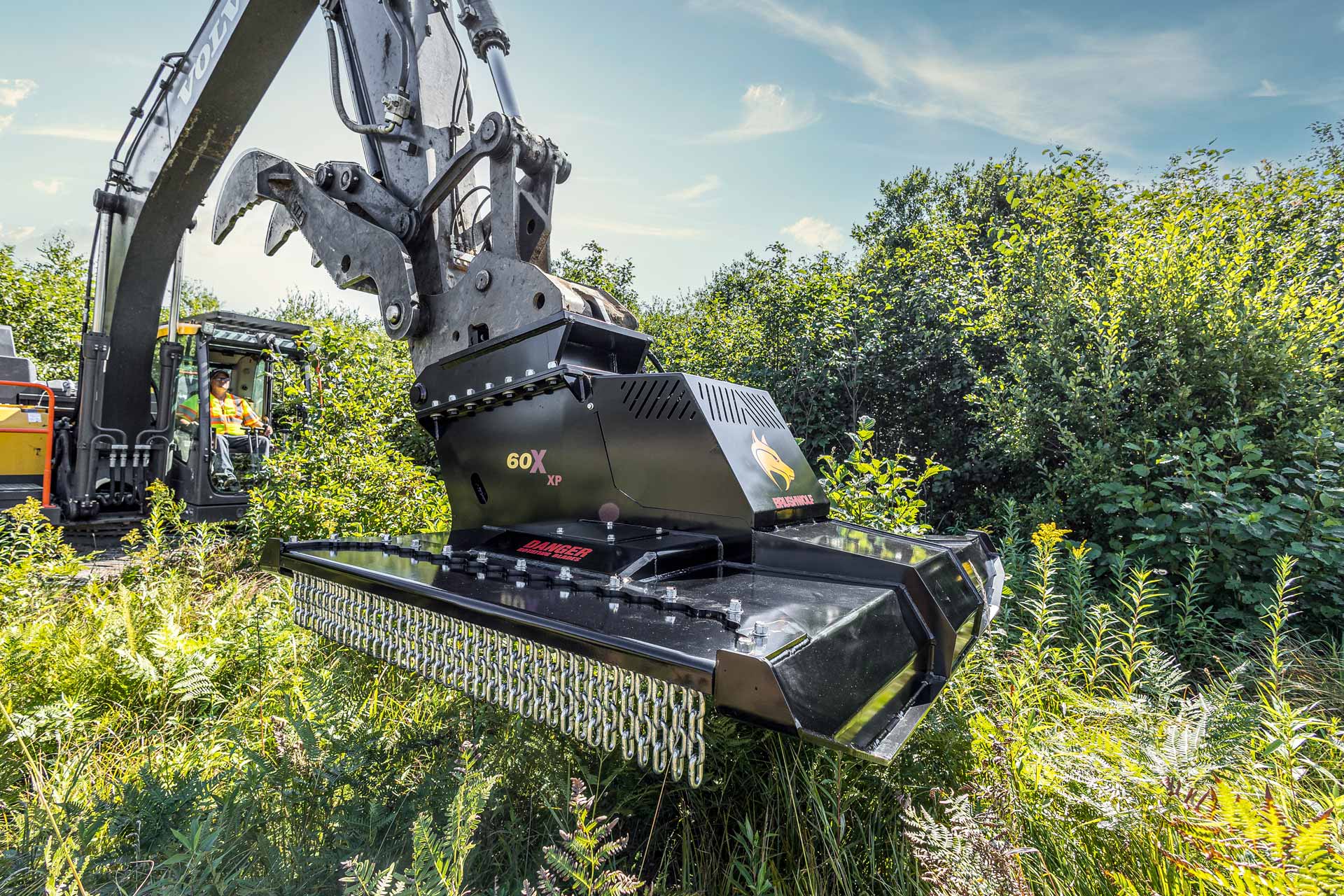

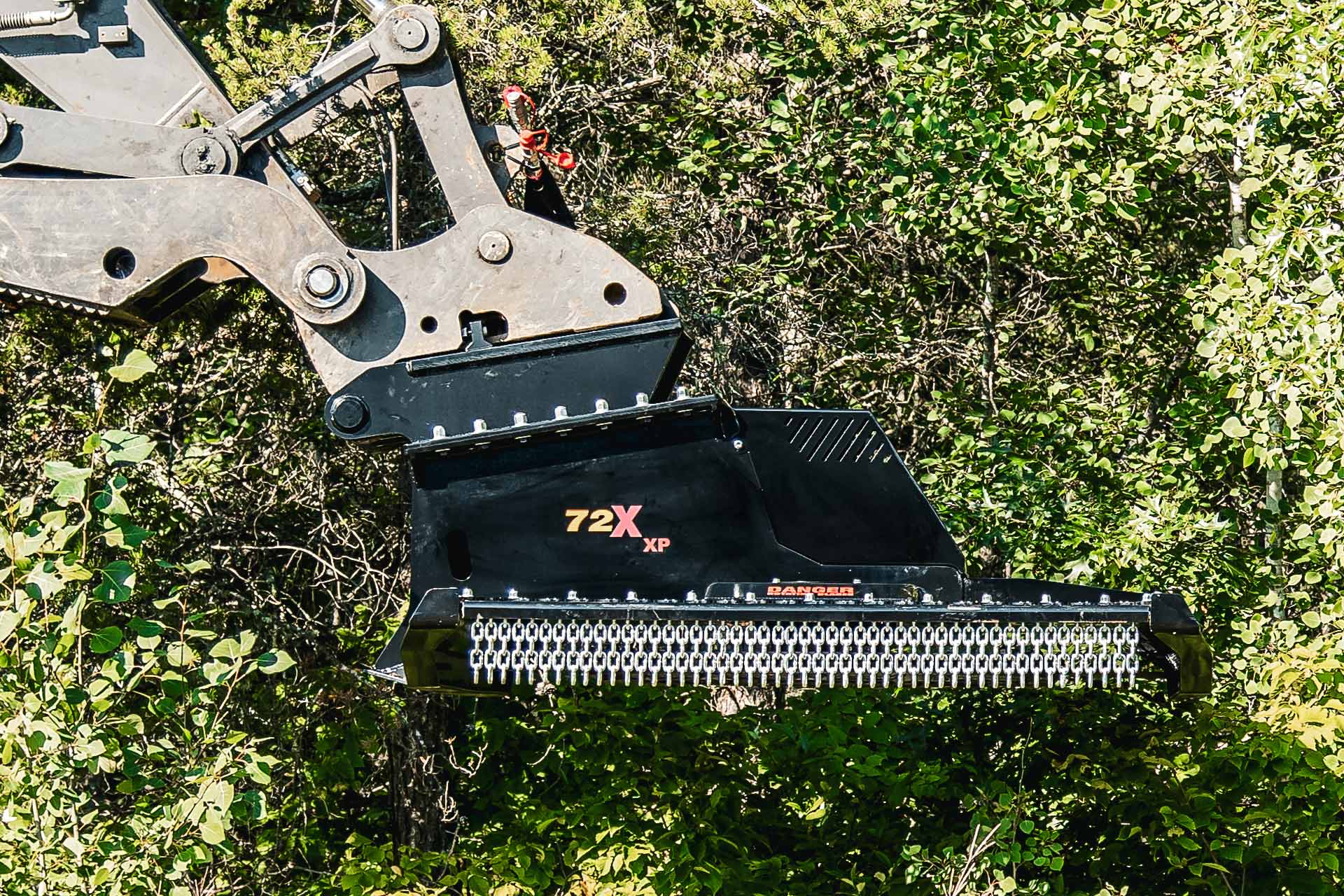

Chain Curtains

Optional, removable 5/16” safety chains to accommodate different cutting styles.

Hood

The vented hood fully encloses the motor and drive components to shield them from damaging impacts and debris. The hood is also hinged to allow easy motor access.

Pilot guard

Pilot Guard

We took safety to the next level by welding a reinforced plate “pilot guard” to the underside of the cutter deck to protect you from flying objects.

Choose color

Choose Your Color

Black, yellow, or make it your own custom color.

Parts available

Parts Always Available

Brush Wolf only uses well-known industry-leading parts and components that are—and will always be—available to order 24/7 at brushwolf.com/parts or by calling 877-390-9857.

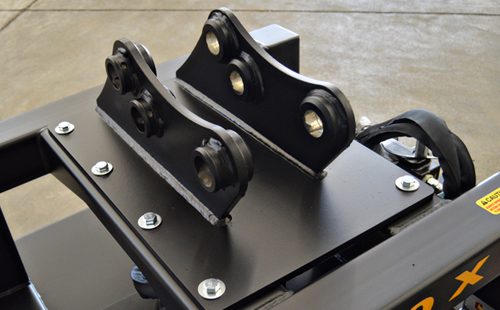

Hanger plate

Hangers

All X-Series cutters come equipped with the necessary mounting bracket or “hanger” needed to attach to your specific operating equipment.

PSI cont./int.4,000
Deck Thickness1/4 in
Motor/Gearbox CouplerMachined steel
Motor ProtectionPressure relief valves, case drain (required)
Blade Carrier (3 Drop Blade Carrier) --standard--1” GRD-50 disc
Blade Carrier (4 Flat Blade Carrier) --optional--Two-piece 5/8" steel discs
Blade RotationCounterclockwise
(3) Drop Blades --standard-- 0.625 x 5"; non-updraft
(4) Hardox® 500 Flat Blades --optional--0.625 x 5.188"; non-updraft
Hood12-ga hinged, vented hood
