Heavy-Duty X-Series
$10,325.00
| Duty Rating | Heavy-Duty |
|---|---|
| Cutting Width | 42" or 48" |
| Hydraulic Flow Range | 14-37 GPM |
| Max Cutting Diameter | up to 4", up to 5", up to 6" |
| Motor Style | Direct-drive radial piston motor |
* The manufacturer’s suggested retail price (MSRP) does not include shipping and taxes. Dealers set actual prices, including invoicing currency.
Description

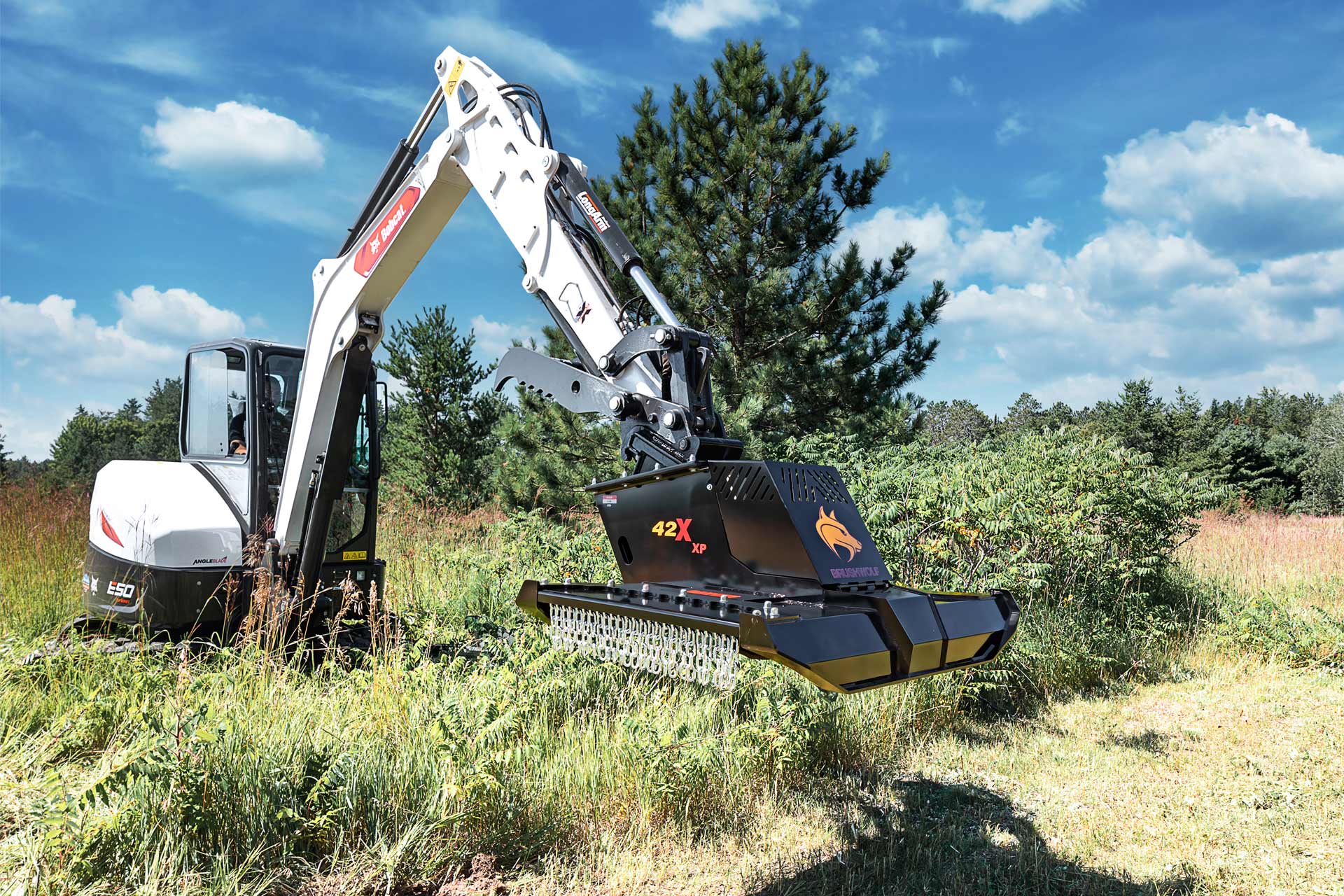

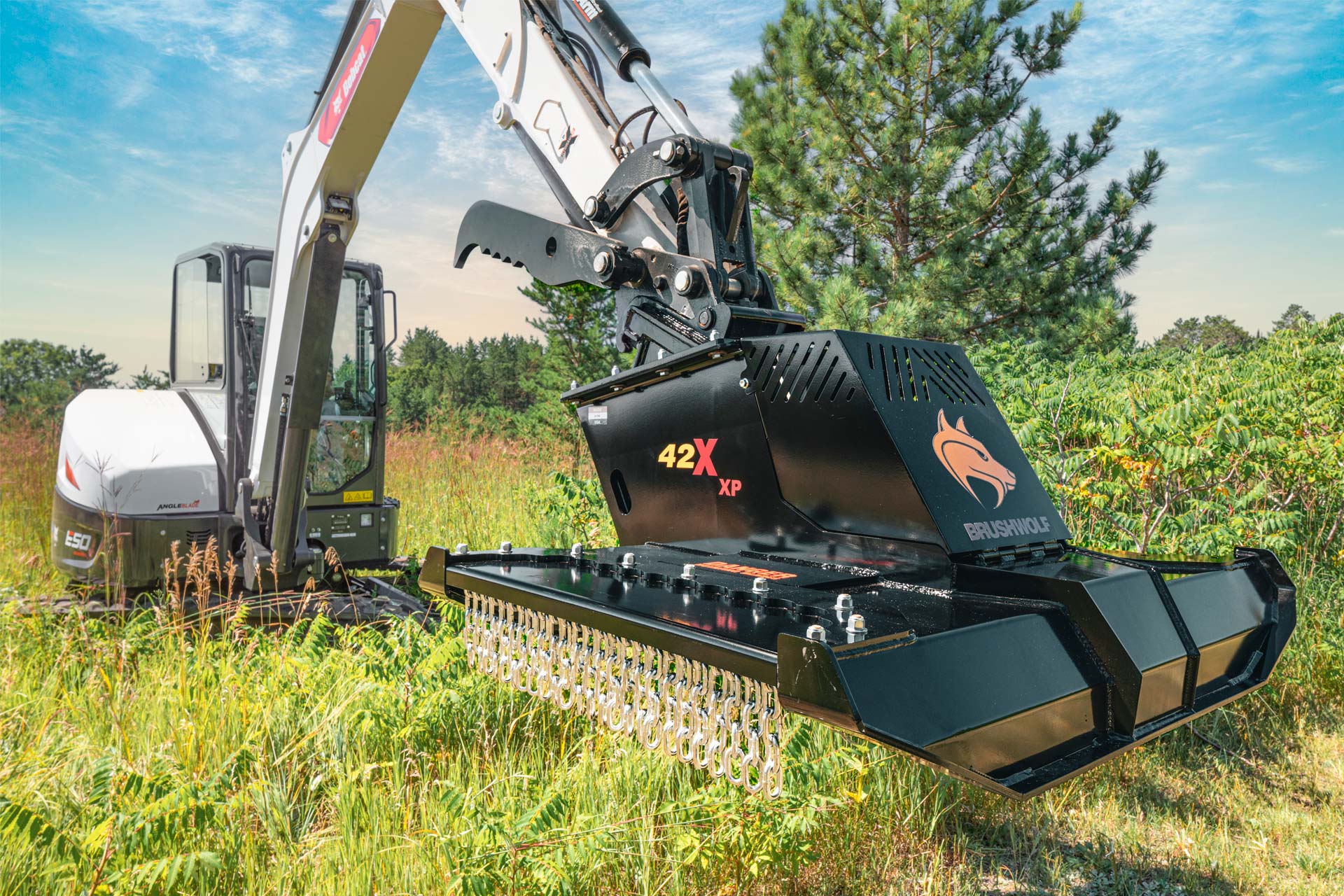

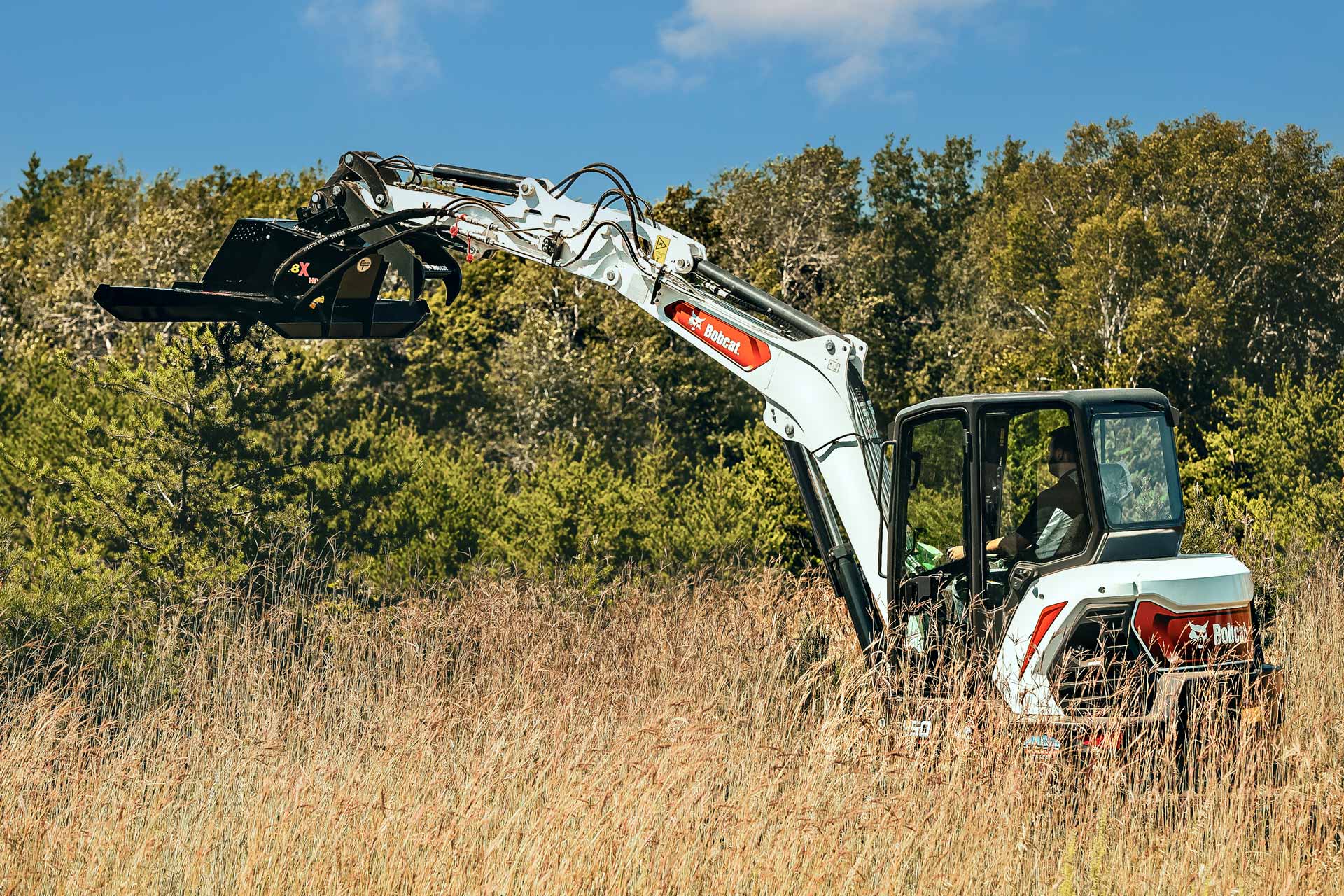

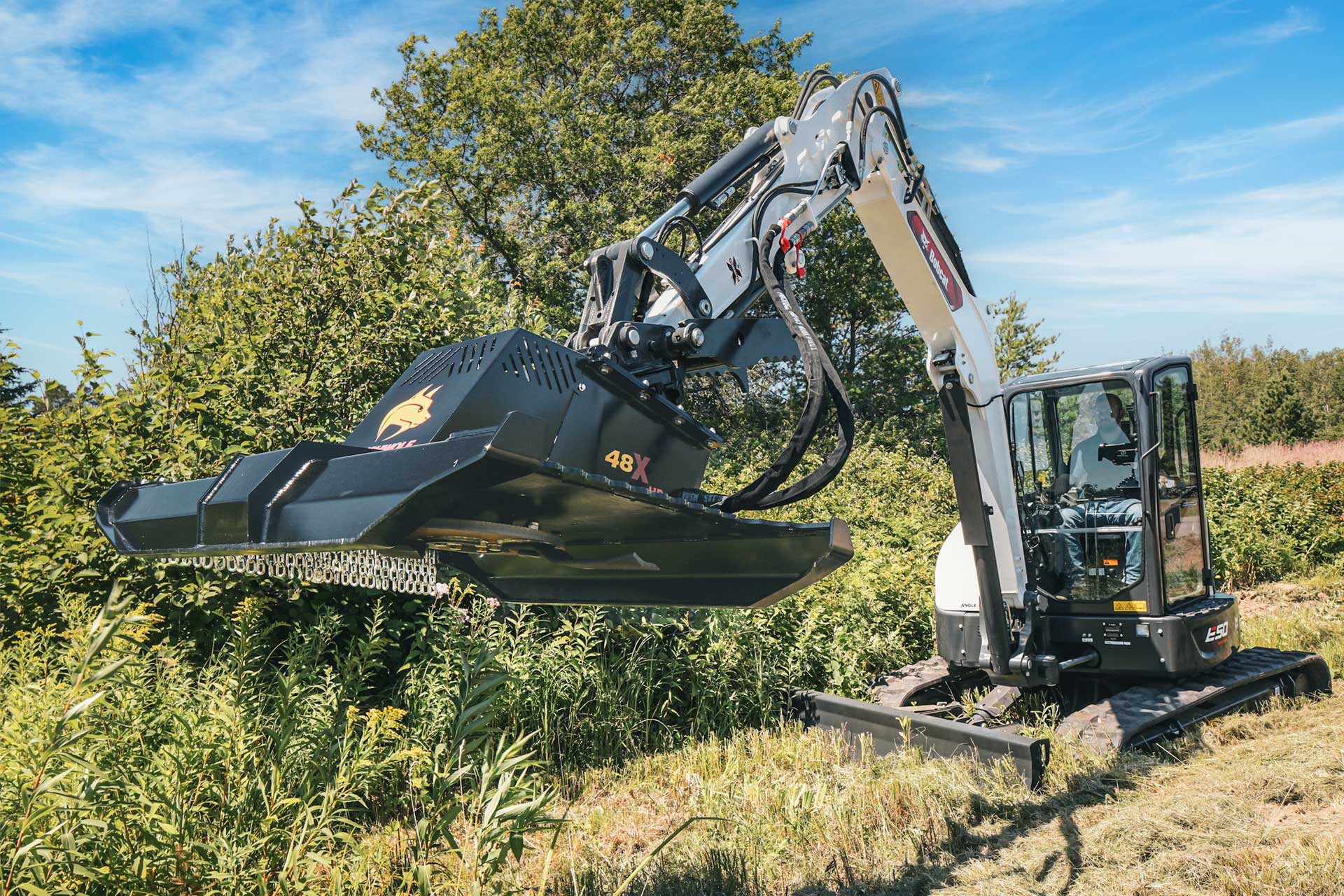

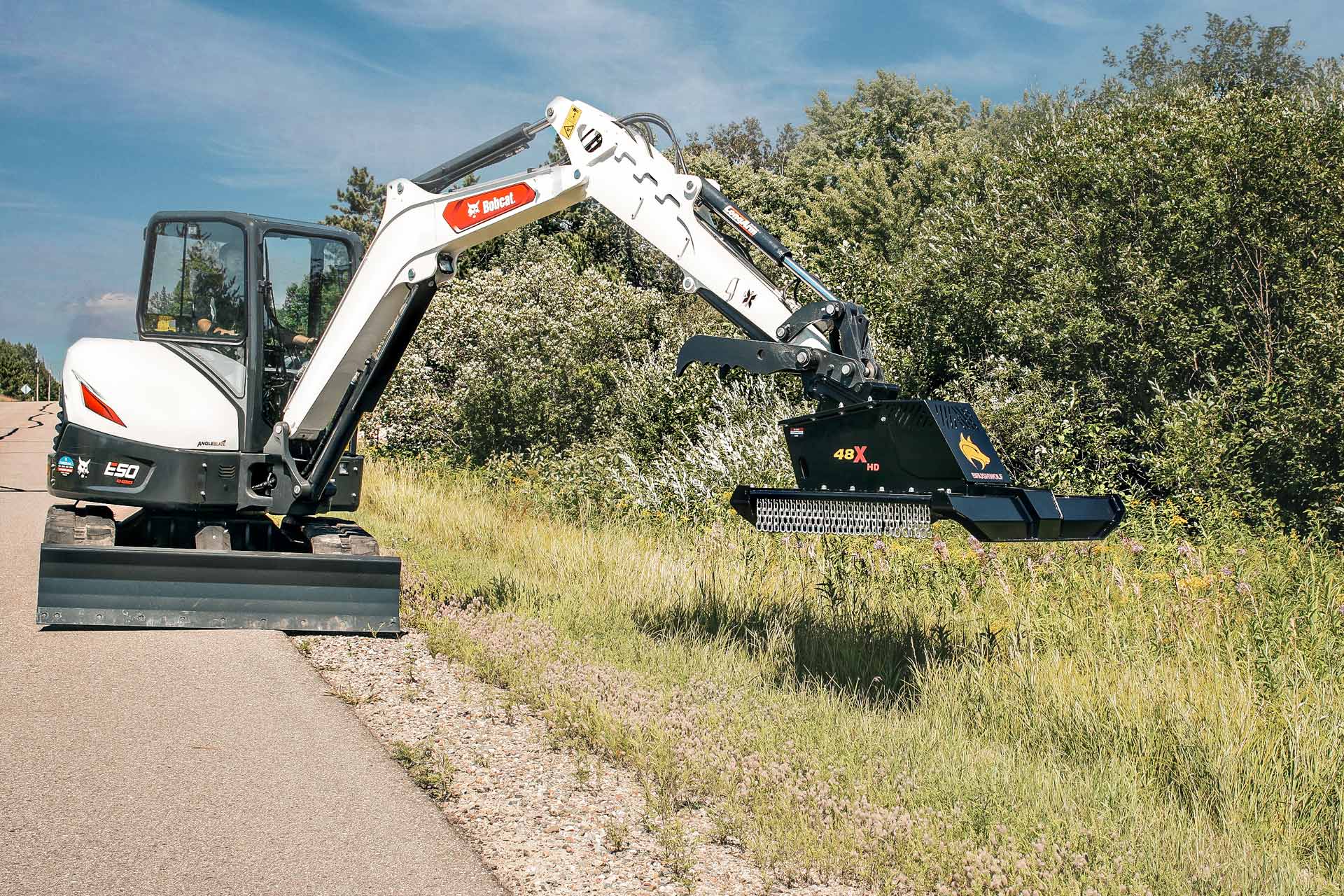

Up your brush-cutting game with the next generation of rotary cutters for mini and mid-size excavators/backhoes. We’ve upgraded our heavy-duty cutters with a powerful piston motor for higher torque and included a hydraulic relief block with an integrated case drain. The now removable chain curtains accommodate different cutting styles, and the vented, hinged hood improves drive-train protection. Big in power, yet still the right size to squeeze in tight spaces. A dependable, versatile cutter you’ll use for virtually everything.
Number of Blades
(2) 0.5 x 4 in; updraft
Blade Type
High-tempered updraft steel blades for lift and mulching action.
Blade Carrier
1” GRD-50 disc.
All Brush Wolf blade carriers are CNC balanced for ultra-smooth operation.
Long-Lasting Blades
The Brush Wolf industrial-strength drop-down blades are heat treated, have a milled edge, and are Supertuf coated to stand the test of time.
Direct-Drive Piston Motor
Experience the power of the direct-drive SAI® radial piston motor. With higher torque, you’ll get more cutting power, quicker recovery time, and less bogging down when accelerating through thick brush.
Massive Bearing Housing
We pair our direct-drive radial piston motor with a robust Eskridge® bearing housing that has a 2.25” shaft diameter and patented shaft retention system.
Motor Protection
Pressure Relief Valves: Added pressure relief valves safeguard your motor from pressure spikes and allow for a faster shutdown.
Case Drain is included to relieve excess pressure build-up and protect the motor.
Gearbox Seal Protection
A welded seal guard collar prevents wire, twine, and vegetation from wrapping around and damaging the gearbox.
Ultra-Rugged Deck Frame
Here’s why our brush cutters last for life. We build each deck frame from a single piece of formed heavy-duty steel, never pieced together. This means our frames are consistently better made and more durable, with the elimination of construction errors and frame failure. One-piece frames will always provide superior strength.
Seam Welding
Unlike our competitors, Brush Wolf’s deck and frame construction is fully boxed and continuously welded across each seam for an indestructible, rust-proof support structure.
Reinforced Gussets
We went above and beyond to make sure our cutters are crazy strong by adding boxed-in gusset reinforcements, extra bracing, and supports.
Powder-Coated Tough
Protected with the most durable finishing process, we powder coat every part to minimize rust, resist scratches, and prevent fading, so you get more life out of your brush cutter.
Blade Access Cover
Easy access to the blade bolts for quick blade replacement.
Plug + Play Ready
Everything is ready to go upon delivery with the included quick-connect couplers, 90” hydraulic hoses encased in protective wrap, and dust caps to prevent line contamination.
Advanced Hose Routing System
We took the time to devise a well-thought-out hose routing system based on real-life situations. Using guides and STAUFF clamps, our hydraulic lines can be routed to either side. So, you choose which side works best for your machine.

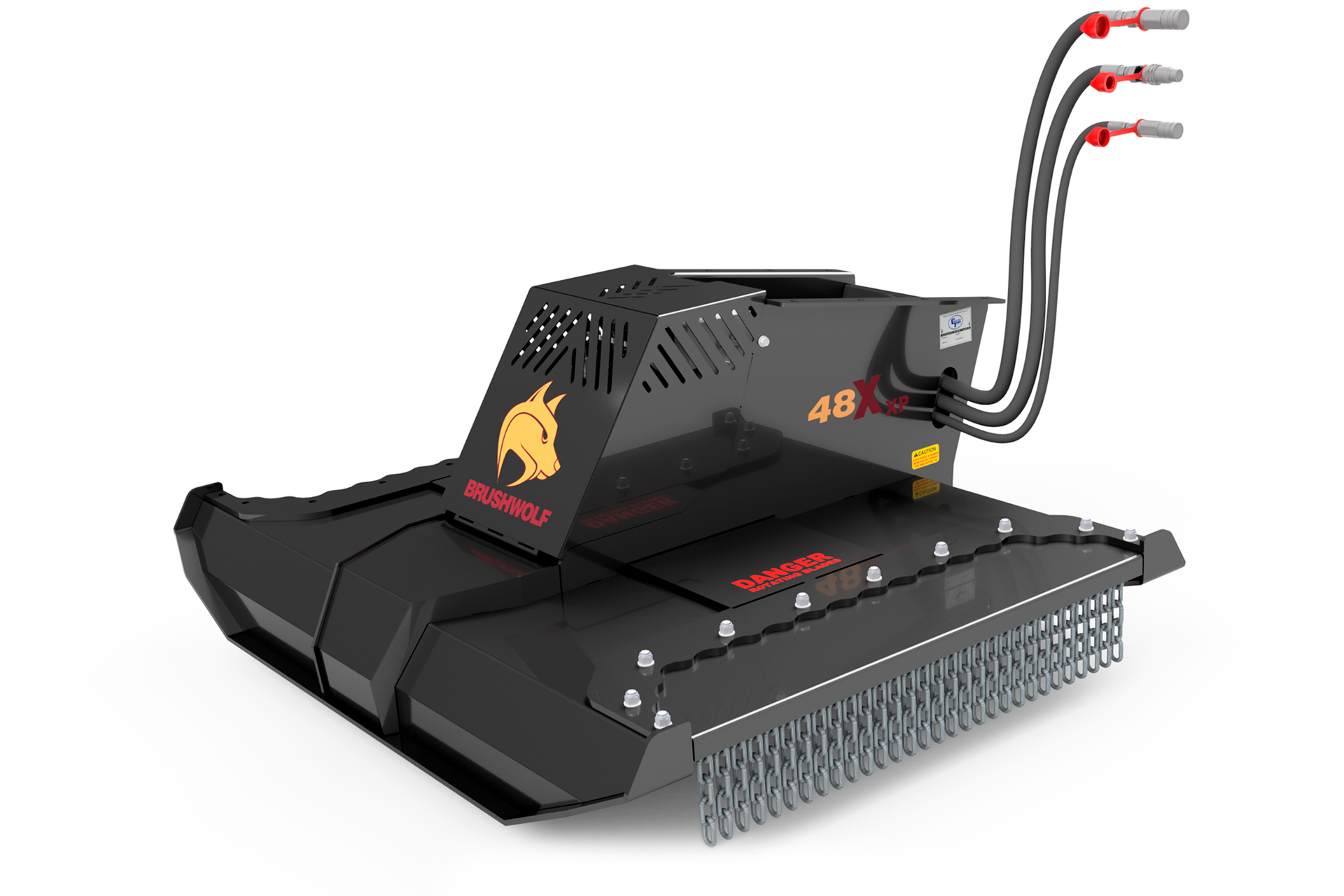

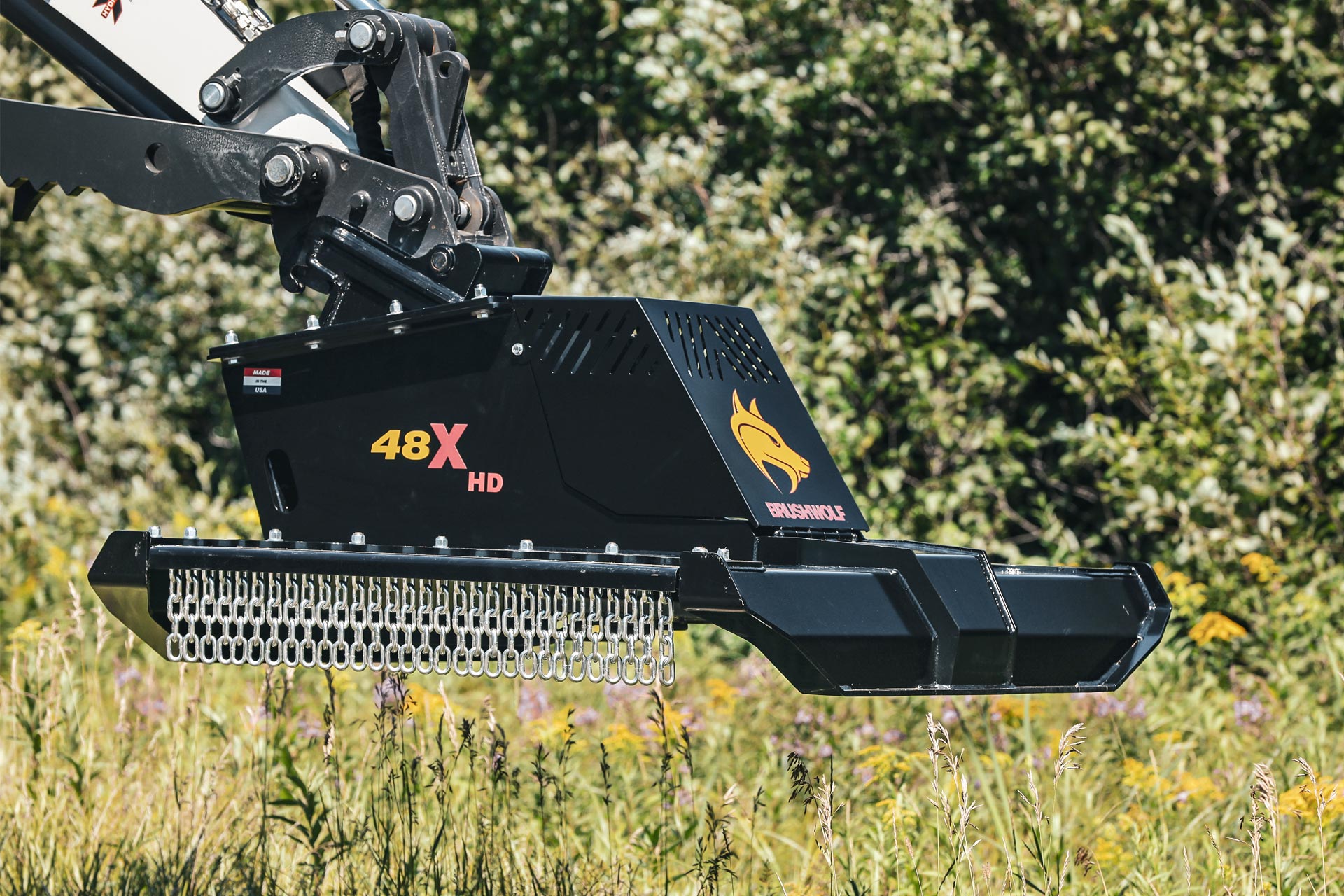

Chain Curtains
Optional, removable 5/16” safety chains to accommodate different cutting styles.
Hood
The vented hood fully encloses the motor and drive components to shield them from damaging impacts and debris. The hood is also hinged to allow easy motor access.
Pilot Guard
We took safety to the next level by welding a reinforced plate “pilot guard” to the underside of the cutter deck to protect you from flying objects.

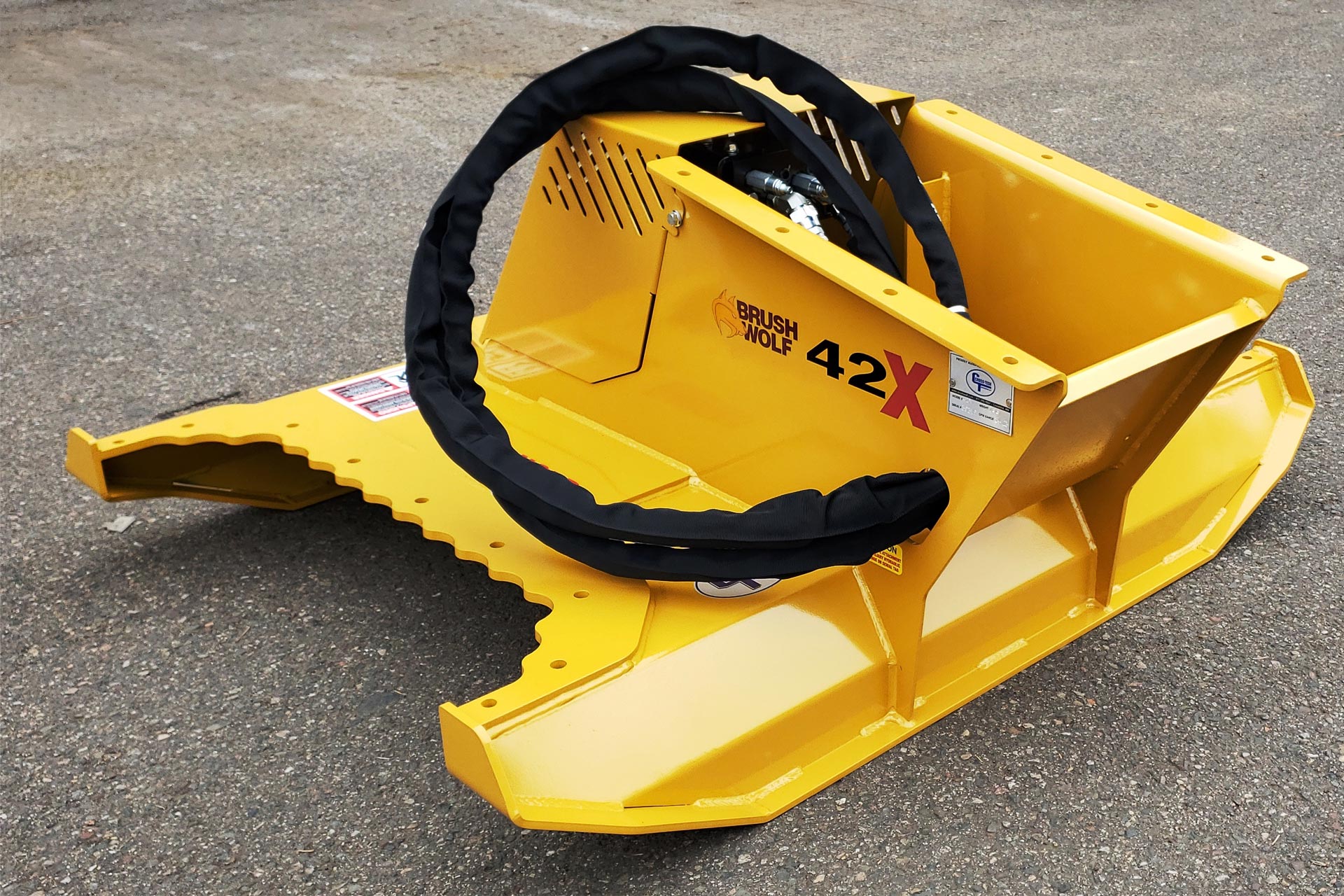

Choose Your Color
Black, yellow, or make it your own custom color.
Parts Always Available
Brush Wolf only uses well-known industry-leading parts and components that are—and will always be—available to order 24/7 at brushwolf.com/parts or by calling 877-390-9857.
Hangers
All X-Series cutters come equipped with the necessary mounting bracket or “hanger” needed to attach to your specific operating equipment.
| PSI cont./int. | 3,500 |
|---|---|
| Deck Thickness | 42X: 10-ga (.135 in); 48X: 7-ga (.188 in) |
| Motor/Gearbox Coupler | Machined steel |
| Motor Protection | Pressure relief valves, case drain (required) |
| Blade Carrier | 1” GRD-50 disc |
| Blade Rotation | Counterclockwise |
| Blades | (2) 0.5 x 4 in; updraft |
| Hood | 12-ga hinged, vented hood |
