|Cutting Width||42" or 48"|
|Hydraulic Flow Range||23-40 GPM|
|Max Cutting Diameter||up to 5"|
|Motor Style||Geroler-style hydraulic motor; right-angle gearbox|
* The manufacturer’s suggested retail price (MSRP) does not include shipping and taxes. Dealers set actual prices, including invoicing currency.
Brush Wolf… with a huge appetite and Timber Wolf bite.

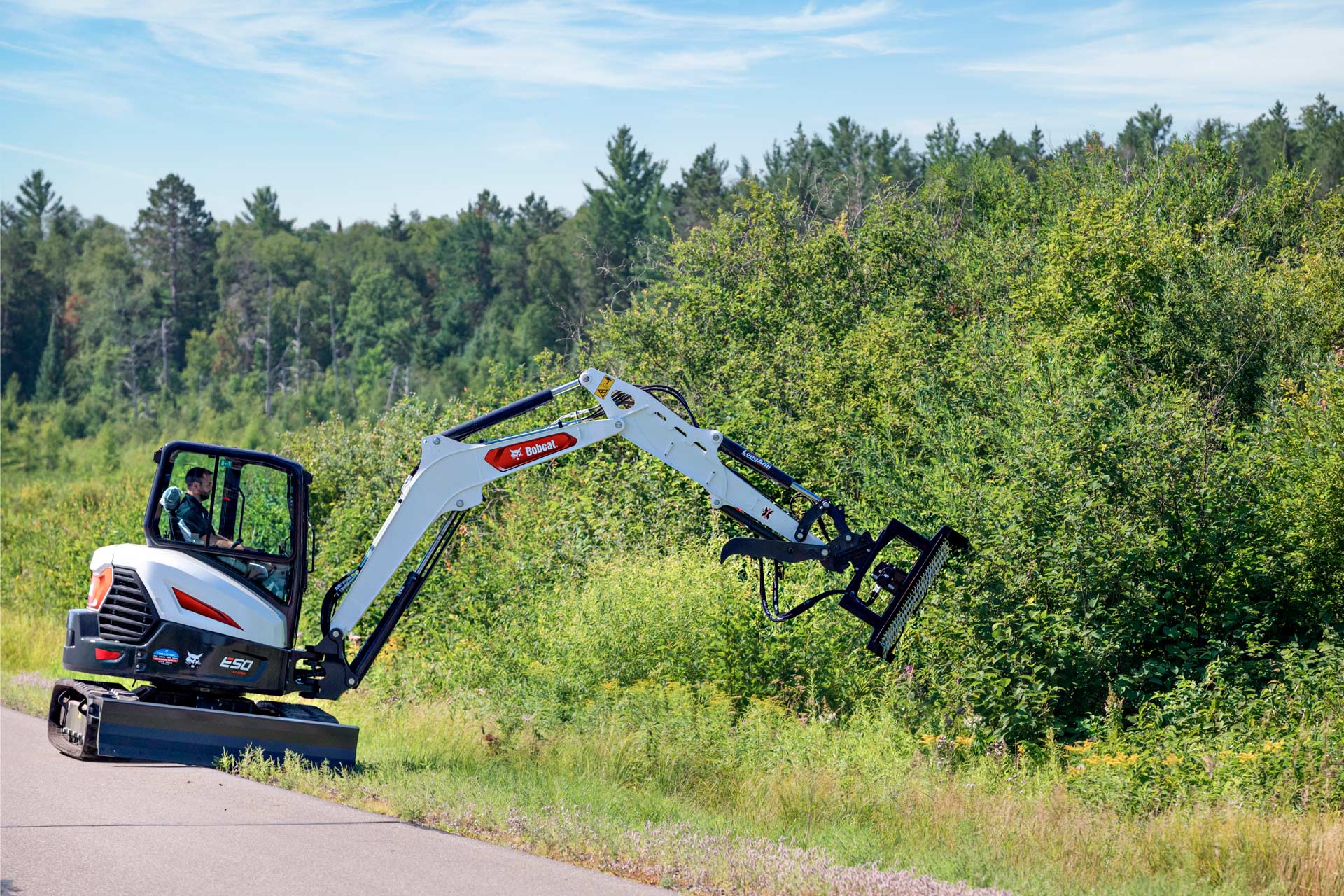

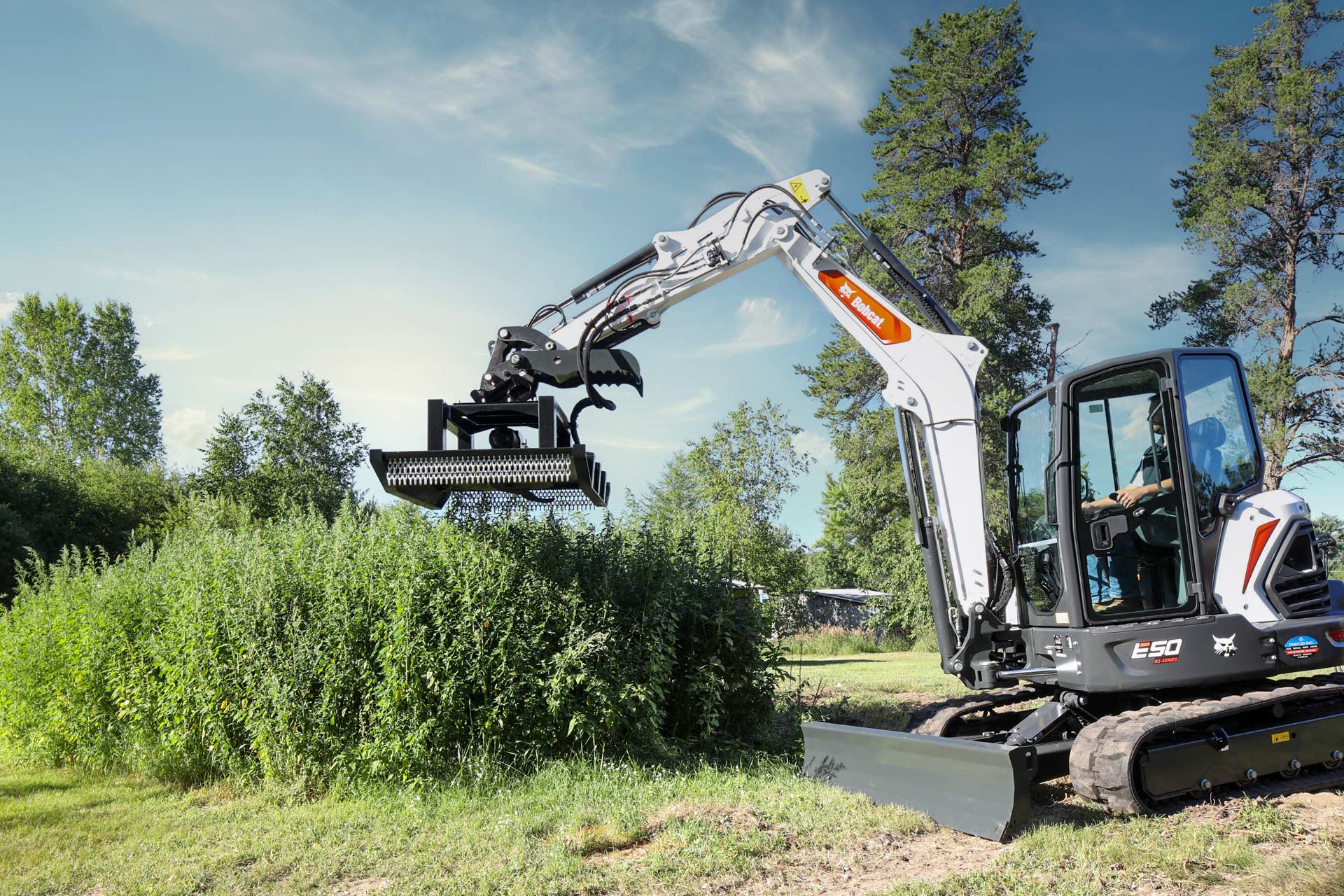

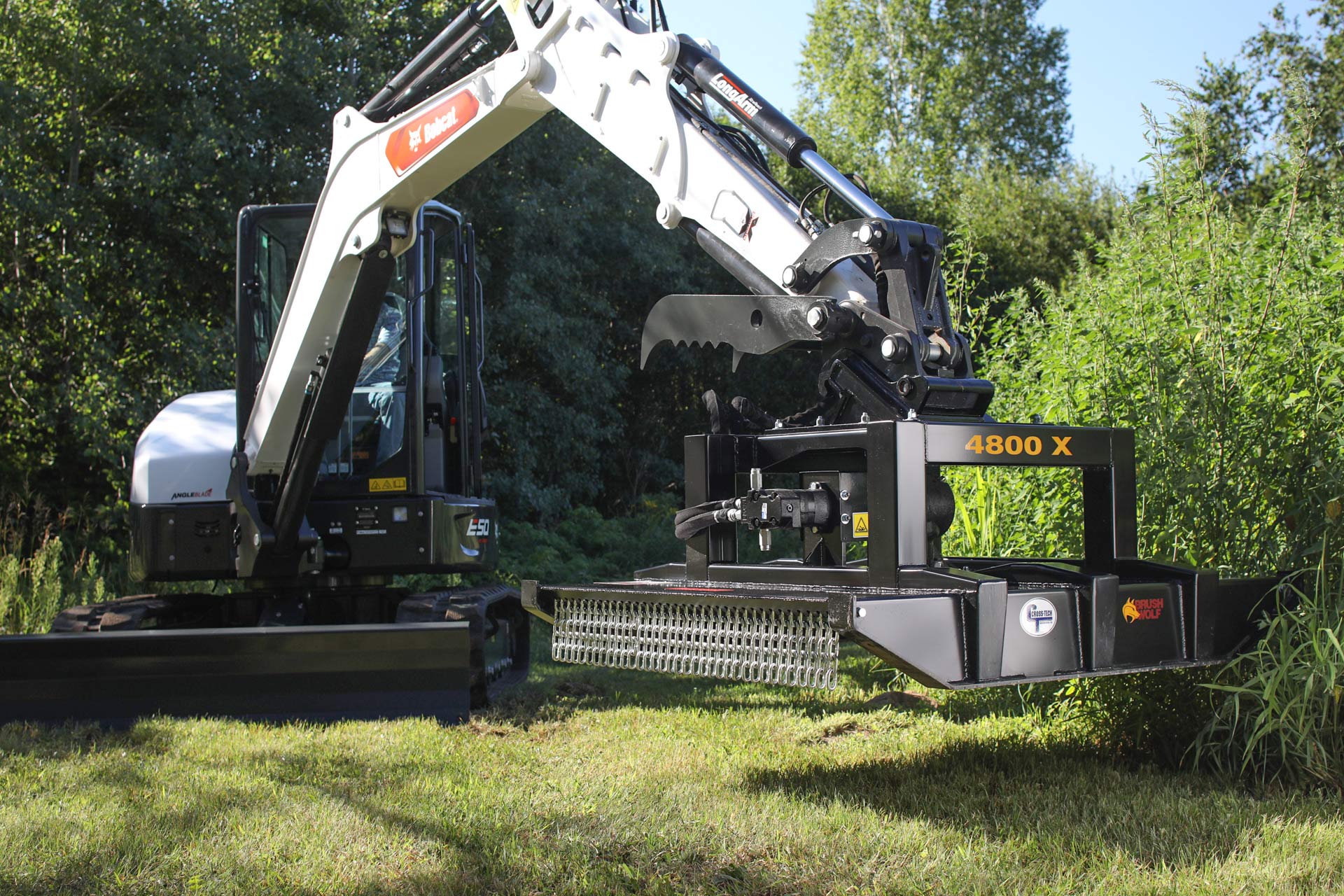

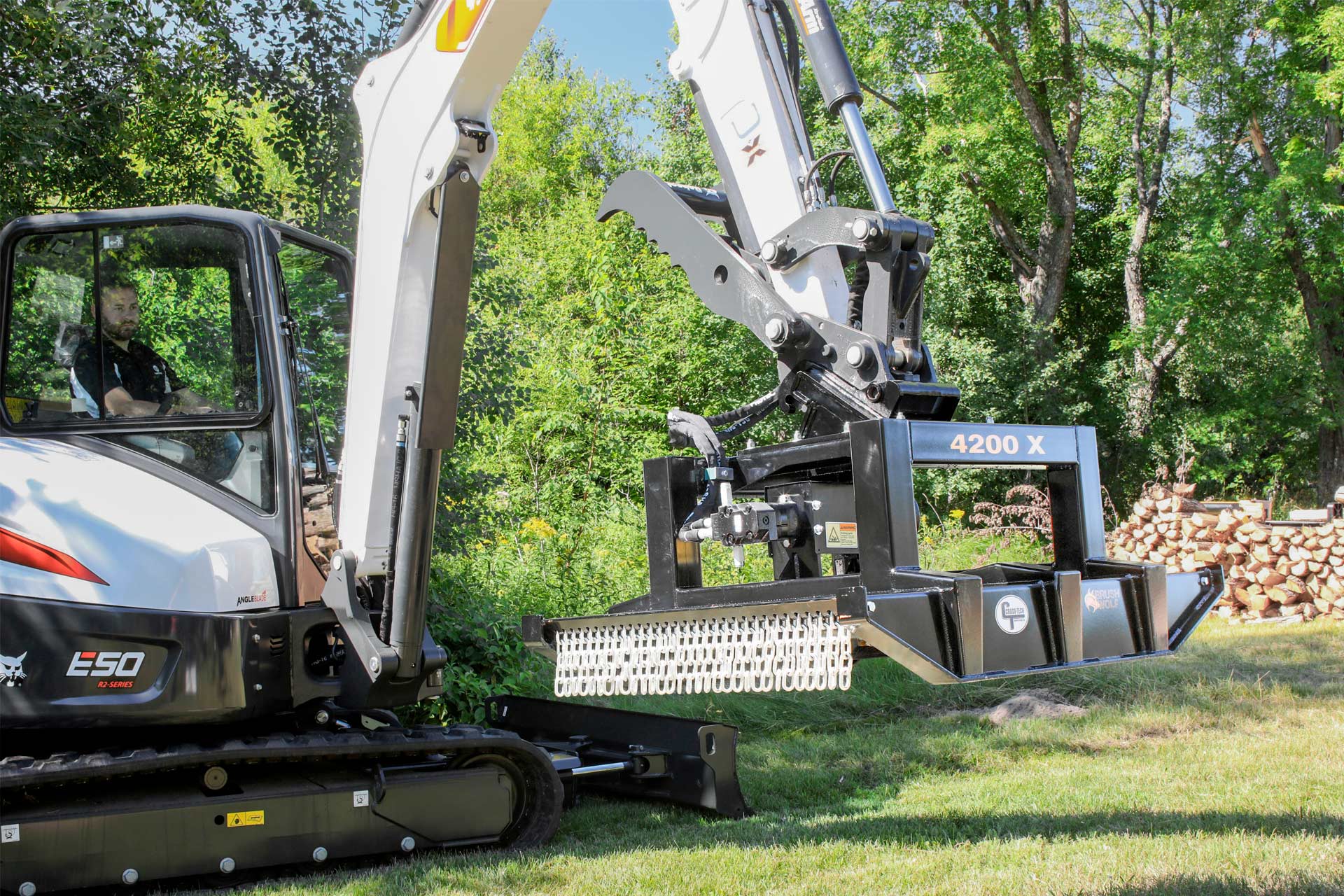

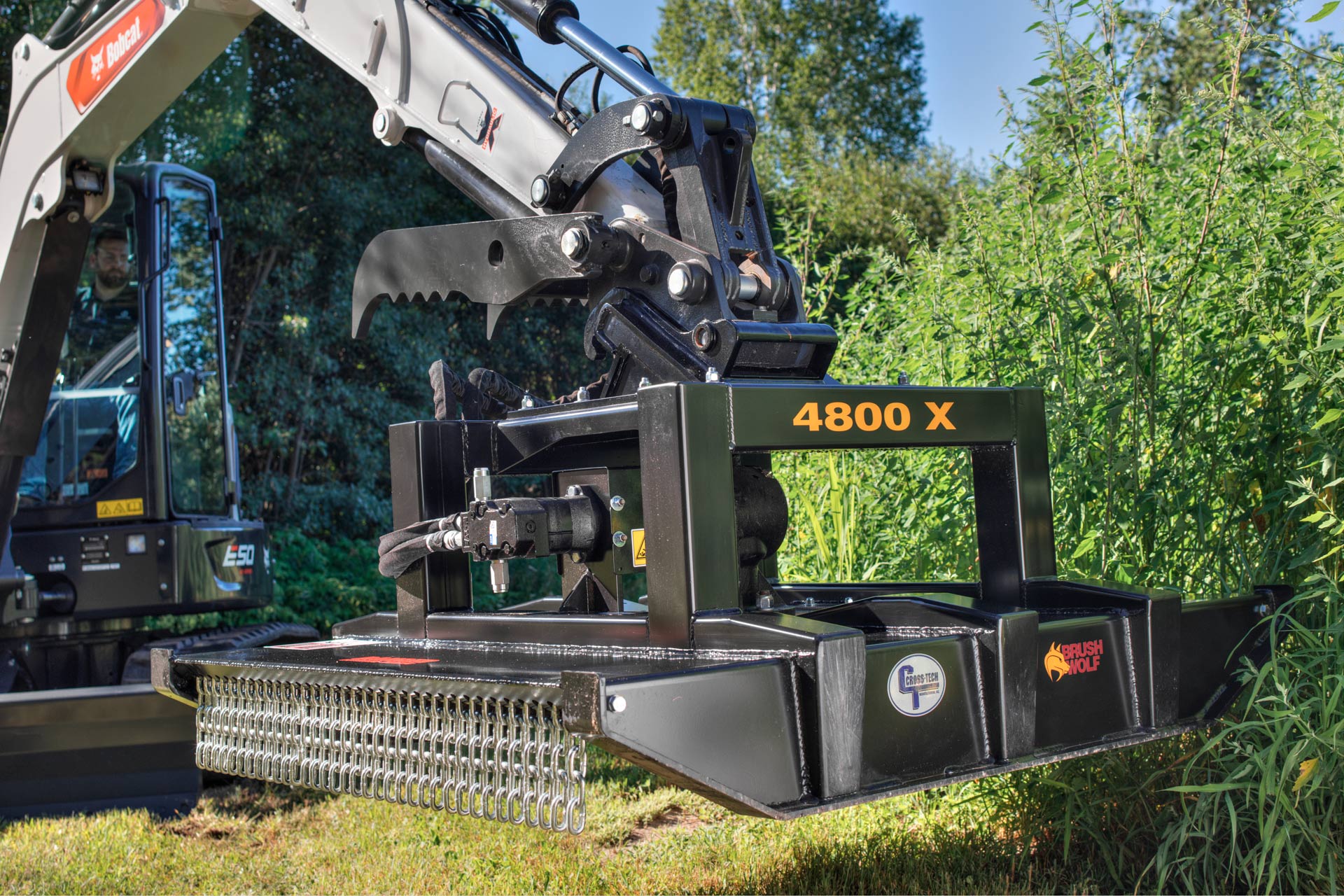

These bulletproof little machines are packed with power and are perfect for clearing steep hillsides, ditches, and tree lines. Our first-generation rotary brush cutters for diggers feature a simplistic design that makes them easy to own and operate. The 4200X is made for compact excavators and backhoes to fit flawlessly in tight places with its 42” cutting width. While the 4800X models fit either compact or mid-size excavators/backhoes and offer a 48” cutting width.
Number of Blades
(2) 0.5 x 4 in; updraft
High-tempered updraft steel blades for lift and mulching action.
1” GRD-50 disc.
All Brush Wolf blade carriers are CNC balanced for ultra-smooth operation.
The Brush Wolf industrial-strength drop-down blades are heat treated, have a milled edge, and are Supertuf coated to stand the test of time.
Premium Hydraulic Motor
We paired the top-of-the-line Eaton® Geroler-style hydraulic motor with the most dependable right-angle Omni® gearbox to achieve maximum torque and ideal blade tip speed. This easy-to-maintain and tried-and-true pairing will survive the years of abuse it will see in the field.
Pressure Relief Valves: Added pressure relief valves safeguard your motor from pressure spikes and allow for a faster shutdown.
Grade-2 Shear Bolt: protects the gearbox and driveline from damage.
Gearbox Seal Protection
A welded seal guard collar prevents wire, twine, and vegetation from wrapping around and damaging the gearbox.
Ultra-Rugged Deck Frame
Here’s why our brush cutters last for life. We build each deck frame from a single piece of formed heavy-duty steel, never pieced together. This means our frames are consistently better made and more durable, with the elimination of construction errors and frame failure. One-piece frames will always provide superior strength.
Unlike our competitors, Brush Wolf’s deck and frame construction is fully boxed and continuously welded across each seam for an indestructible, rust-proof support structure.
We went above and beyond to make sure our cutters are crazy strong by adding boxed-in gusset reinforcements, extra bracing, and supports.
Protected with the most durable finishing process, we powder coat every part to minimize rust, resist scratches, and prevent fading, so you get more life out of your brush cutter.
Blade Access Cover
Easy access to the blade bolts for quick blade replacement.
Plug + Play Ready
Everything is ready to go upon delivery with the included quick-connect couplers, 90" hydraulic hoses encased in protective wrap, and dust caps to prevent line contamination.
5/16” replaceable safety chains on two sides contain flying debris to protect you and your cutter and aid in mulching.
We took safety to the next level by welding a reinforced plate “pilot guard” to the underside of the cutter deck to protect you from flying objects.
Choose Your Color
Black, yellow, or make it your own custom color.
Parts Always Available
Brush Wolf only uses well-known industry-leading parts and components that are—and will always be—available to order 24/7 at brushwolf.com/parts or by calling 877-390-9857.
All X-Series cutters come equipped with the necessary mounting bracket or “hanger” needed to attach to your specific operating equipment.
|PSI cont./int.||3,000/3,500; 4800X HF 3,000/4,100|
|Deck Thickness||4200X: 10-ga (.135 in); 4800X: 7-ga (.188 in)|
|Motor/Gearbox Coupler||Machined steel|
|Motor Protection||Pressure relief valves, GRD-2 shear bolt|
|Blade Carrier||1” GRD-50 disc|
|Blades||(2) 0.5 x 4 in; updraft|
|Hood||12-ga hinged, motor guard|
